Commax P Series CDV50P-40CK 4 Wire Colour Low Cost Video Entry Kit

Zoom

Our Price:   £185.00 List Price:   £286.02 Saving Of:   £101.02 (35%) (Exc. 20% VAT)(£222.00 Inc. VAT) Catalogue No:  CDV50P-40CK Brand:  Commax Availability:      Delivery Information Commax P Series CDV50P Colour Monitor  + £120.00 Commax P Series DRC-40CK Colour Low Cost Camera  + £73.88 DP-4VHP 4 Wire Audio Entry Additional Phone  + £10.59 Tweet Download Data Sheet Wiring Diagram

Low Cost Colour Video Door Entry Kit CDV-50P/DRC-40K

Commax colour video entry kit. By employing the same high quality components and build specification as the standard Commax range, the system meets the requirements for video entry where traditional systems may be uneconomical.

Kit includes 1 Colour Monitor, 1 Colour camera and power supply

Kit can be expanded to two cameras and two monitors, also compatible with audio only handset

The CDV50P/40CK includes a stylish 5'' LCD TFT colour monitor and a robust door station. The system requires just 4 wires to connect the door station to the monitor handset, and with the lock release function being supplied from the door station, the installation is simple and fast.

Options include a flush or surface mounted, stainless steel housing kit with the additional option of integrating a keypad or proximity reader. A second door station can be connected, along with a second monitor handset and/or an audio extension phone.

Colour System Schematics

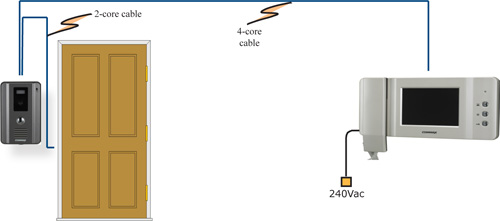

Standard 1 to 1 kit:

Simple 4-wire connection between the monitor and the door station.
The lock release is controlled via a clean normally open contact.
Recommended power supplies for lock control

Note:

The lock release is supplied separately, therefore an additional power supply is required to supply the lock
(ac or dc depending on lock type) - for clarification, please contact the technical support department.

Complete system capability:

Simple 4-wire connection between the monitors and the door stations.
The lock releases are controlled via clean normally open contacts.

Note:
