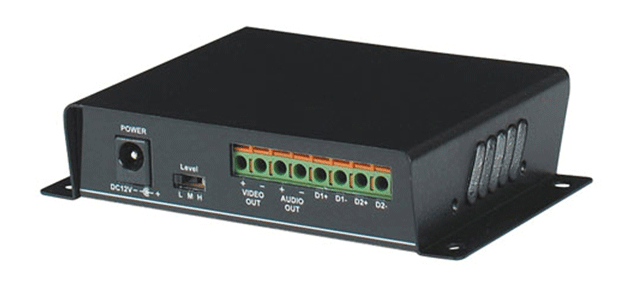

Genie CCTV GTA001 Audio and Data Transmitter

Genie CCTV GTA001 Audio and Data Transmitter
Our Price:  £24.48
List Price:  £36.00
Saving Of:  £11.52 (32%)
(Exc. 20% VAT)(£29.38 Inc. VAT)

Catalogue No:  GTA001
Brand:  Genie CCTV

Current Item:


Click for delivery info

Genie CCTV

Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

GTA001 Active Baluns

Product Overview

Active Video, Audio and Data Transmitter, BNC and RCA Video & Audio Input, 8-Way Terminal Block used for Video, Audio, Alarm and Data (2-Wire RS232 or RS485), DC12V Power Supply Inc.

Key Features

Genie’s “Smart Cabling” Active Baluns are designed for use with Category 5e Unshielded Twisted Pair (UTP) cable. Each Transmitter and Receiver is supplied with a DC12V Power supply as standard and can transmit and receive full motion composite video signals up to 900 metres in Colour and 1800 metres in Monochrome.

  • Transmits Full Motion Colour or Monochrome Video, Data (RS422 /RS485) and Audio Over a Single Category 5e UTP Cable
  • Three Position Frequency Compensation Switch on the Transmitter
  • Monochrome video transmission up to 1800m or up to 900m in Colour
  • Built in Transient Protection and Ground Lifting
  • Power Supplies, DC 12V, Included

Technical Specification

Model Number
 Video Input 1 Vp-p 75 Ohm (BNC Connector)
 Power  DC 12V
 DC Output for Camera DC 12V Regulated
 Power Consumption 40mA (Max)
 Dimensions (W x H x D) 109mm x 77mm x 24mm
 The recommended cable media is Category 5e Unshielded Twisted Pair (UTP) Cable 4-pair (24AWG)
