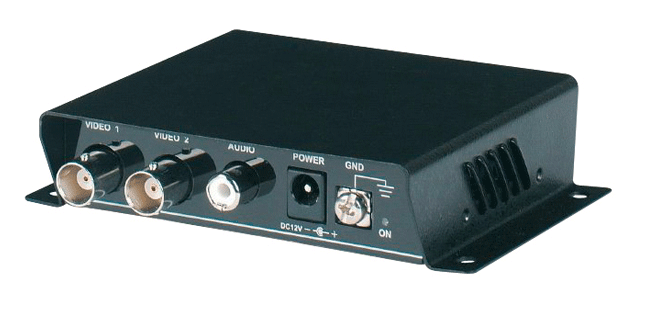

GTA002 Active Baluns
Product Overview
Active Video, Audio and Data Receiver, 2 x BNC and RCA Video & Audio Output, 8-Way Terminal Block used for Video, Audio, Alarm and Data (2-Wire RS232/RS485), DC12V PSU Inc.
Key Features
Genie’s “Smart Cabling” Active Baluns are designed for use with Category 5e Unshielded Twisted Pair (UTP) cable. Each Transmitter and Receiver is supplied with a DC12V Power supply as standard and can transmit and receive full motion composite video signals up to 900 metres in Colour and 1800 metres in Monochrome.
- Transmits Full Motion Colour or Monochrome Video, Data (RS422 /RS485) and Audio Over a Single Category 5e UTP Cable
- Five-position DIP Switch on the Receiver to Adjust Signal Strength
- Brightness Adjustment on the Receiver
- Monochrome video transmission up to 1800m or up to 900m in Colour
- Built in Transient Protection and Ground Lifting
- 2 X Video Outputs on the Receiver
- Power Supplies, DC 12V, Included
Technical Specification
Model Number
| GTA002
|
| Video Input | 2 X Video Outputs Each |
| Video Output | 1Vp-p 75 Ohm (BNC Connector) |
| Power | DC 12V |
| DC Output for Camera | DC 12V Regulated |
| Power Consumption | 40mA (Max) |
| Dimensions (W x H x D) | 109mm x 77mm x 24mm |
| The recommended cable media is Category 5e Unshielded Twisted Pair (UTP) Cable 4-pair (24AWG) | |
