GTA004 Active Baluns
Product Overview

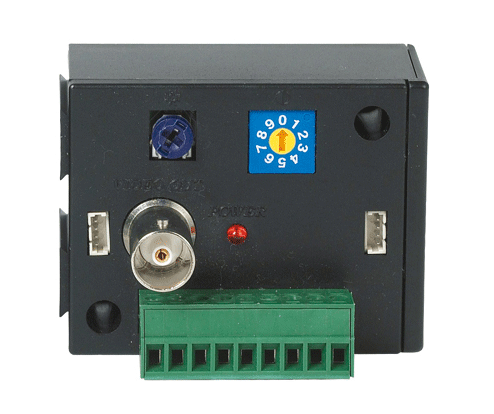

Active Video Receiver, BNC Output, Terminal Block Input, DC12V Power Supply Included, Built-In Transient Protection & Ground Lifting.
Key Features
Genie’s “Smart Cabling” Active Baluns are designed for use with Category 5e Unshielded Twisted Pair (UTP) cable. Each Transmitter and Receiver is supplied with a DC12V Power supply as standard and can transmit and receive full motion composite video signals up to 900 metres in Colour and 1800 metres in Monochrome.
- Transmits Full Motion Colour or Monochrome Video Signal
- Monochrome video transmission up to 1800m or up to 900m in Colour
- Built in Transient Protection and Ground Lifting
- Modular Design
- Can be “Daisy Chained” Together by Removing the End Caps
- Frequency Compensation, Low, Medium, High
- DC12V Power to Camera From – Maximum 300mA
- Red LED: Power On / Off Indication
- Can Be “Daisy Chained” Together by Removing the End Caps
- Brightness Control
- Ten-position Distance Range Switch to Adjust Signal Strength
- DC12V Power Supplies Included, 500mA
Technical Specification
Model Number
| GTA004 |
| Video Input | 1 Vp-p75 Ohm (BNC Connector) |
| Power | DC 12 V |
| DC Output for Camera | 40mA (Max) |
| Power Consumption | Cat 5e Cable 4-pair (24AWG) |
| Dimensions (W x H x D) | 49mm x 42mm x 45mm |
