GTA414 Active Baluns
Product Overview

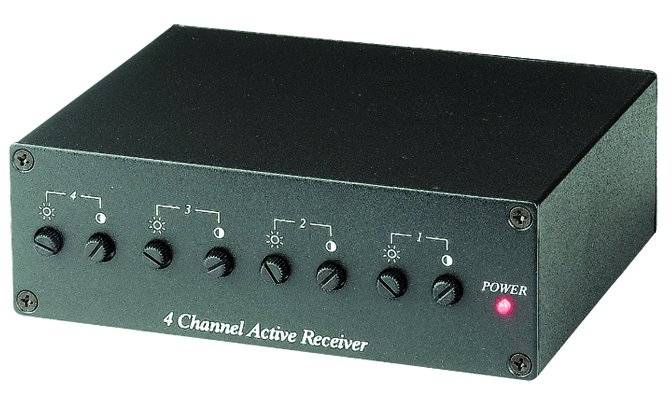

4- Channel Active Video Receiver, 4 x BNC Outputs, 1 x Terminal Block Input, DC12V Power Supply Inc., Black Metal Enclosure.
Key Features
Genie’s “Smart Cabling” Active Baluns are designed for use with Category 5e Unshielded Twisted Pair (UTP) cable. Each Transmitter and Receiver is supplied with a DC12V Power supply as standard and can transmit and receive full motion composite video signals up to 900 metres in Colour and 1800 metres in Monochrome.
- 4 –Channel Active Receiver Unit with Individual Gain Adjustments
- Monochrome video transmission up to 1800m or up to 900m in Colour
- 4-Way Terminal Block for Video Input
- 4 x BNC Connector for Video Output
- Built-in Transient Protection and Ground Lifting
- For Use With Category 5, 5e or 6 UTP Cable
- Supplied With 12V DC Power Supply
Technical Specification
Model Number
| GTA414 |
| Nominal Input Impedance | 100-105 Ohm (Balanced) |
| Nominal Output Impedance | 75 Ohm (Unbalanced) |
| Input Connector | 4 Position Terminal Block |
| Output Connector | 4x BNC Connector |
| Video Input | 1V p-p |
| Video Output | 1V p-p |
| Cable Type | Category 5 5e or 6 UTP (24AWG) |
| Power | 12V DC Max 150mA |
| EMI Standard | Meets FCC Class B / CE |
| Dimensions (W x H x D) | 133mm x 43mm x 115mm |
| Material | Metal Black in Colour |
| Operating Temperature | 0° C ~ +40° C |
| Operating Humidity | 20% ~ 80% |
