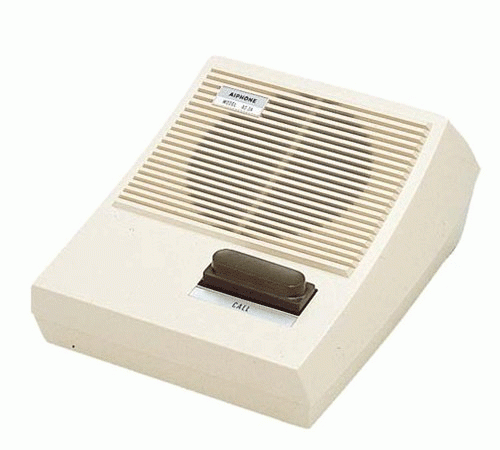

AIphone AS-3A desktop/wall mount high power sub station

AIphone AS-3A desktop/wall mount high power sub station
  Zoom

Our Price:  £31.59(Exc. 20% VAT)(£37.91 Inc. VAT)
+
Variants:

Catalogue No:  AS-3A
Brand:  Aiphone

Current Item:



Click for delivery info

Aiphone


Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

AIphone AS-3A Sub Station High power intercom

Features AS-3A Audio

  • High-power Intercom 10 watts
  • Desktop type audio sub stations, ceiling speaker or 8 Ω horn speaker
  • Selective all call up to 5 substations (800 mW all call)
  • 10 watts is only available for transmission from the master sttion to the horn speakers

Specification

Power source
220-240 VAC 50/60 Hz
Consumption
45W 6W standby
Communication
Sub calls in with tone & LED, 15 sec. Depress selector and use Talk/Listen switch. All call selectivelt to max. 5 subs. Max. 10W transmit, adjustable. 300 mW receive, adjustable
Wiring
1 twisted pair per sub station non polarized. 3 twiste pair for master to master
Distance
AP-M to sub 150M (0.65mm) 230M (0.8mm)
 Dimensions196 x 240 x 140
