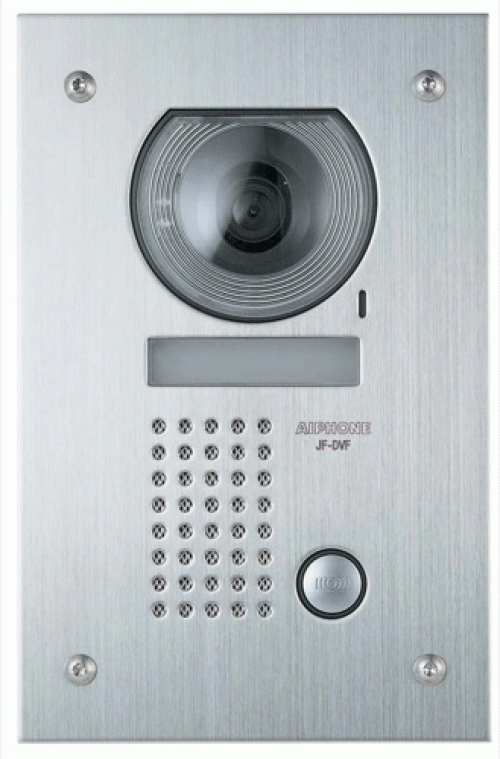

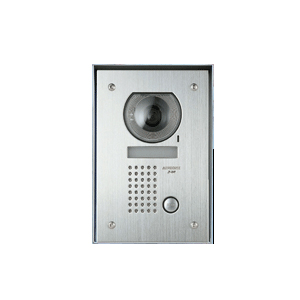

AIphone JF Range of 1 Button Colour entrance panels

Zoom

Our Price:   £367.20 List Price:   £936.00 Saving Of:   £568.80 (61%) (Exc. 20% VAT)(£440.64 Inc. VAT) Variants:    Flush  Surface  Flush Anti Vandal  Surface Anti Vandal  Flush with keypad  Surface with keypad  Lo cost Surface Catalogue No:  JFFS-1 Brand:  Aiphone Availability:      Delivery Information Tweet

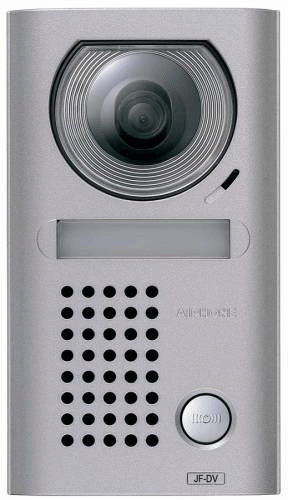

AIphone JF-DV Master colour Monitor

AIphone JF-DV

• One door & two monitors (3-1/2 inch); room to room communication is not available
• Total hands-free communication, auto-voice actuation
• Streamlined & Thin design, only 27 mm thickness
• Vandal resistant video door stations are available
• White LED illumination turns on in low-light conditions
• Instant voice call-in with image
• Visual monitoring with audio for 1 minute
• Press-to-talk operation available
• Talk LED lights in red while speaking
• Optional audio sub station (JF-1SD)
• Option - Option button, press-to-talk setting

Power source	18V DC
Power supply	PS-18D
Consumption	Max. 450mA (JF-1MD). Max. 300mA (JF-1FD)
Calling	Chime. Image & audio, approx. 45 sec.
Communication	Approx. 1 min. AUTOMATIC (Hands-free); To activate, momentarily press TALK button. MANUAL (Press-to-talk/Release-to-listen); To activate, press TALK button for 1 sec. or more.
Video monitor	3-1/2 inch direct-view TFT color LCD.
Scanning line	525 lines
Night viewing	Up to 30cm from camera, with white LED projected, background beyond 30cm cannot be seen.
Door release	24V AC/DC, 500mA (N/O dry closure contact)
Wiring	Door to master: 2-cond., mid cap, solid, non-shielded. Master to sub: 6-cond., mid cap, solid, non-shielded.
Wiring distance	Master/Sub (farthest room station) to door: 50m (0.65mmø) 100m (1.0mmø) Master to IER-2: 75m (0.65mmø) 150m (1.0mmø)
