Genie CCTV GCA01A Coaxial Video and Audio Amplifier

Genie CCTV GCA01A Coaxial Video and Audio Amplifier
Our Price:  £22.09
List Price:  £40.78
Saving Of:  £18.69 (46%)
(Exc. 20% VAT)(£26.51 Inc. VAT)

Catalogue No:  GCA01A
Brand:  Genie CCTV

Current Item:


Click for delivery info

Genie CCTV

Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

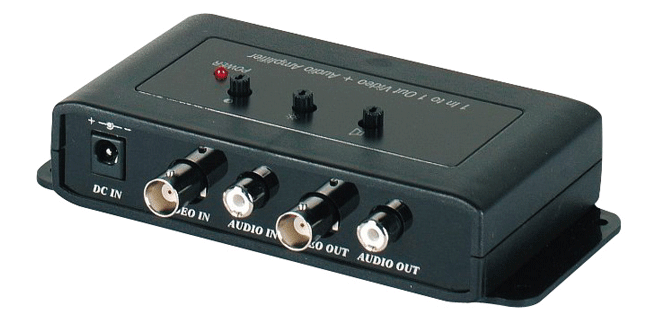

GCA01A Coaxial Amplifier

Product Overview

Coaxial Video and Audio Amplifier, 1 x BNC Input & RCA Input to 1 x BNC Output & RCA Output, 10dB Video Gain, DC12V, Individual Gain Controls, Power Supply Included.

Key Features

  • Wide Bandwidth, Video Gain Compensation and Amplification
  • Video and Audio Gain Adjustment
  • Transmission Range: 1Km When Using RG59/BU Coaxial Cable
  • DC12V
  • Red LED: Power On/Off
  • For Connection to Video Cameras, Multiplexers, DVR etc.
  • Power Supply Included

The GCA01A is a single video and audio input to single video and audio output amplifier.

 Technical Specification

Model Number
 Video Input Channel 1
 Video Output Channel 1
 Audio Input Channel 1
 Audio Output Channel 1
 Video Input Level 0.8 ~ 1.2V p-p 75 Ohm
 Video Output Level 1V p-p (Standard) 75 Ohm
 Video Bandwidth 10Hz - 10MHz
 Transmission Range 1000 Metres Maximum
 Power Supply DC12V
 Power Consumption 110mA
 Dimensions (W x L x H) 138 x 76 x 32 mm
 Weight  110 Grams
 Material ABS Black
