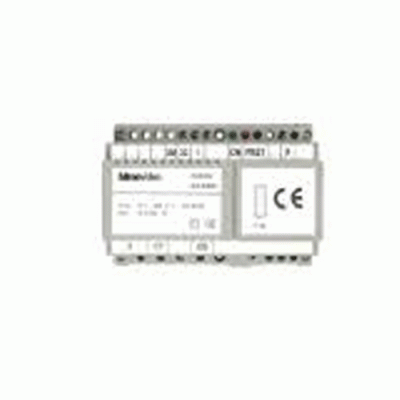

AN5498 PSU for additional monitor

AN5498 PSU for additional monitor
  Zoom
Our Price:  £64.29
List Price:  £80.24
Saving Of:  £15.95 (20%)
(Exc. 20% VAT)(£77.15 Inc. VAT)
+

Catalogue No:  AN5498
Brand:  Bitron-Video

Current Item:



Click for delivery info

Bitron-Video


Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

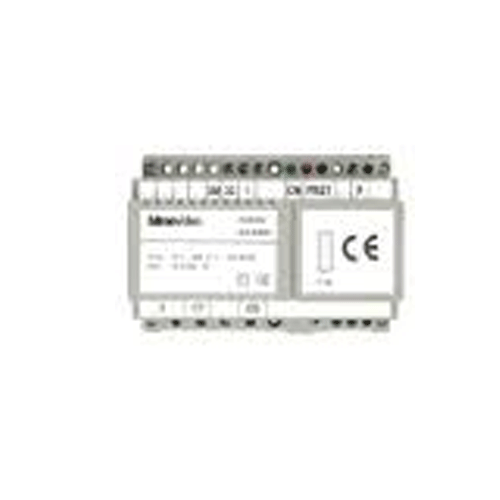

 AN5498 PSU for additional monitor

GENERAL
Its peculiar shape meets the news market requirements to centralize all electrical equipments in DIN boxes.
It is suitable to locally feed only one Bitron Video monitor: MV55/U - MV55/UI - MV 60 - MV 60/l - MV 70 - MV 70/l - MV80 - MV100 -
MVC100
The manufacturer shall not be liable for any damages caused by or wrong use of the product.
The power supply shall be installed in a dry and aired place.

TECHNICAL DATA
Supply voltage: ………………………….……………117V - 230Vac ±10%
Frequency: ………………………………………….…..…...….…. 50/60 Hz
Outputs : …………………………………………………………… 17 V=1 A
Weight: ………………………….……………………………..…….…980 gr.
Dimensions: ……………………………….…..………..…. 145 x 100 x 85h

INSTALLATION
The electrical installation must be in conformity to IEC rules and specifications.
Specifically the following precautions must be observed:
- All sets making the installation must be used only for the purpose for which they are designed.
- Before connecting the power supply to the mains voltage, check the rating plate.
- Foresee, before the power supply, an automatic circuit breaker to protect and section the unit.
- After installing the power supply reallocate the side covers protecting the wires.
- Do not close the slots for heat output.
- Before doing any cleaning or maintenance disconnect the mains acting on the proper switch.
- In case of failure disconnect the power supply from mains voltage, by acting on the mains switch, and call the technical
assistance.
- Repairs can be done only by the manufacturer authorized personnel.

INSTALLATION IN SURFACE OR EMBEDDED BOX
Type:
- SINGLE RAIL 7 DIN MODULES ( fig. 1)
- MULTIPLE DIN BOX ( fig. 2)

OPERATION
Terminal 3M supplies a 17Vdc voltage when on terminal 3C there is a voltage of at least 14V dc – voltages referred to ground
terminal 1.
In stand-by, with mains connected, the green ON led is switched on. After an overload or a short circuit, the green ON led is off and the
red PROT led is on, which means the power supply is in backup. The backup status lasts about 8 sec. and restart is automatic if the
overload has been removed. If both leds are off this means lack of voltage or interrupted fuse.

FUSES REPLACEMENT
If necessary, the fuse can be replaced using only same type, same value and same features, complying with IEC specifications. 1
spare fuse is present under the cover; its value is

F1 = T2A DELAYED
To replace them proceed as follows:
- Disconnect the power supply from the mains.
- Extract the fuse cover and the fuse to be replaced.
- Change the fuse with the new approved one, reinsert the fuse cover and press downwards to block it
Bring back the mains power to the power supply.

DESCRIZIONE MORSETTI
morsettiera d’ingresso: morsettiera d’uscita:
Ø neutro rete elettrica 3M uscita 17Vdc per monitor
117 fase elettrica 117V 3C ingresso attivazione alimentatore
230 fase elettrica 230V 1 massa alimentatore
P uscita positivo fisso 17Vdc
I

DESCRITPION OF TERMINALS
Input terminal board: Output terminal board:
Ø mains neutral 3M 17Vdc for monitor
117 117V live 3C power supply switch on input
230 230V live 1 power supply ground
