Bitron Video AV1423-001 T-Line Black and White Monitor

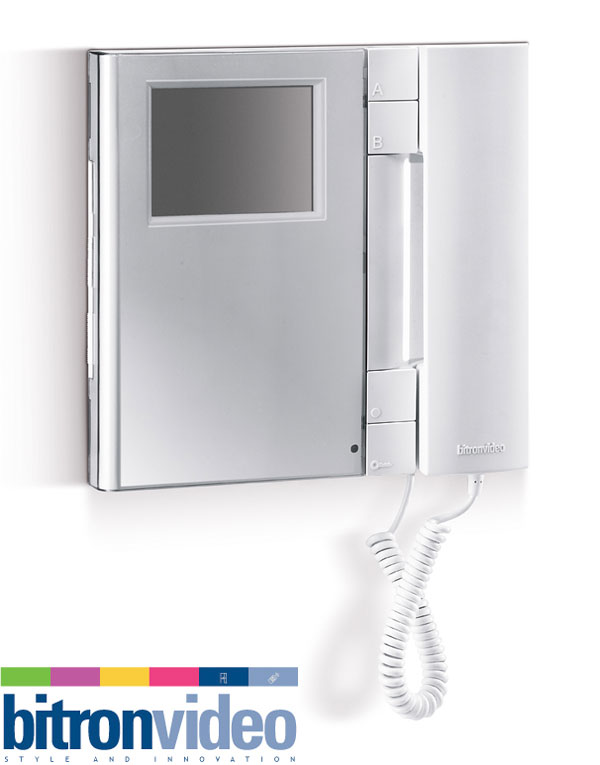

T-line AV1423-001 video doorphones


A device suitable for all needs. Including that of the system in which it is installed. T-line video doorphones are indeed compatible with all Bitron Video systems.

The merit of such versatility goes to the special brackets – one for each different system type - which make the video doorphone practically universal: perfect for B-fast and for 5-wire no-coax systems alike.

This means that the system can be wired before choosing the terminal.

Instead of being fixed, calling volume is controlled by a three level potentiometer. Settings are ‘loud’, ‘soft’ and ‘mute’. In the latter case, the device will not ring when a call is received. A red tab will appear on the bottom of the monitor when this setting is selected.

In addition to the typical door button, Bitron has added two buttons (A and B) used for releasing a second lock and for switching the staircase lights on. A four button is used to silently switch the monitor on.

The ‘heart’ of the T-line video doorphone is its four-inch display. Two versions are available: B/W flat screen or colour TFT, both with adjustable contrast and brightness. The monitor measures 220.4 x 220 x 63 mm.

Terminal installation is simple and rapid. No embedding box is required.

T-line video doorphones

AV1423/001
4” T-line B/W video doorphone with door opener button and three service buttons.
Includes status LED and adjustable calling volume, mute function and indicators. White ABS with smoky grey screen.
Wall-mounting bracket not included.

AV1423/002
4” T-line colour video doorphone with door opener button and three service buttons.
Includes status LED and adjustable calling volume, mute function and indicators. White ABS with shaded screen.
Wall-mounting bracket not included.


SYSTEM BRACKETS

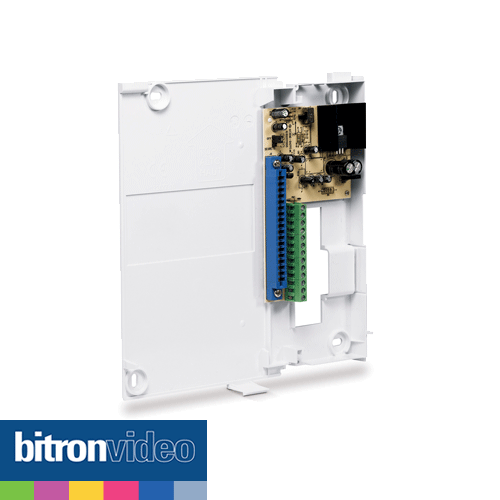

AV1423/010 Wall mounting bracket for connecting to standard 5-wire systems.
AV1423/011 Wall mounting bracket for connecting to B-fast systems.
AV1423/012 Wall mounting bracket for connecting to Eurobus systems.
AV1423/013 Wall mounting bracket for I-bus systems connections without concierge switchboard.


ACCESSORIES

AV1407/50
Additional module with 6 buttons, 1 switch and 2 service LEDs.
Suitable for installation with T-line audio doorphones and video doorphones.
With directory, this module may be used in intercom systems and for auxiliary services, such as staircase lights, second lock control, etc.

AV1407/51
Additional module with 6 buttons, 1 switch and 2 service LEDs.
Suitable for installation with T-line audio doorphones and video doorphones in B-fast systems. With directory, this module may be used in intercom systems and for auxiliary services, such as staircase lights, second lock control, etc.

AV1423/202
T-line video doorphone table-top assembly base.
Transparent plexiglass.

AV1423/203
T-line video doorphone table-top assembly kit with additional buttons AV1407/50 or AV1407/51.
Transparent plexiglass.
