(Details shown apply to the default selection)
Catalogue No: AV2850-1Brand: Bitron-Video
Click for delivery info
The newest introduction to the Bitron Video product range is the synthesis of technological innovation and careful design.

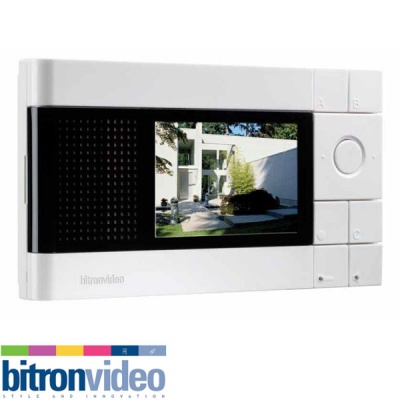

All buttons can be used for smart functions which go well beyond the ‘classic’ functions of other devices.The door opener button, for instance, is backlit by a two-colour LED which indicates when the door is open (red) and when a call is in progress (green). In the latter case, the LED helps to locate the door opener button in the dark.Furthermore, the ‘auto-on’ button may be used to switch the outdoor camera and the display on even without having received a call. This function can be used to observe the outside of the building at any time of the day. The buttons A, B and C may be used to manage auxiliary services, such as opening a second gate and switching on the staircase lights.The many functions of the T line hands-free video doorphone encompass a high-tech colour TFT monitor. With four inches of width, the monitor ensures excellent viewing conditions from all angles and is controlled by a set of buttons. The contrast, colour and brightness of the display may be adjusted. The call volume may also be adjusted to three different positions (loud, soft and mute): a red indicator will appear when the latter is selected.The T-line hands-free video doorphone is very small (200 x 124 x 38 mm). This makes it ideal for wall-mounted installations and perfect for embedding (with its special kit, it protrudes by only 16 mm from the wall).Installers will no longer need to worry about whether the device is compatible with the rest of the systemor not. The T-line hands-free video doorphone is indeed provided with special brackets which make it very easy to install in all Bitron Video systems, including 5-wire, Eurobus and B-fast.
Bitron Video T Line
T-line video doorphones
AV1423/001 4” T-line B/W video doorphone with door opener button and three service buttons.Includes status LED and adjustable calling volume, mute function and indicators. White ABS with smoky grey screen.Wall-mounting bracket not included.AV1423/002 4” T-line colour video doorphone with door opener button and three service buttons.Includes status LED and adjustable calling volume, mute function and indicators. White ABS with shaded screen.Wall-mounting bracket not included.SYSTEM BRACKETSAV1423/010 Wall mounting bracket for connecting to standard 5-wire systems.AV1423/011 Wall mounting bracket for connecting to B-fast systems.AV1423/012 Wall mounting bracket for connecting to Eurobus systems.AV1423/013 Wall mounting bracket for I-bus systems connections without concierge switchboard.ACCESSORIESAV1407/50 Additional module with 6 buttons, 1 switch and 2 service LEDs.Suitable for installation with T-line audio doorphones and video doorphones.With directory, this module may be used in intercom systems and for auxiliary services, such as staircase lights, second lock control, etc.AV1407/51 Additional module with 6 buttons, 1 switch and 2 service LEDs.Suitable for installation with T-line audio doorphones and video doorphones in B-fast systems. With directory, this module may be used in intercom systems and for auxiliary services, such as staircase lights, second lock control, etc.AV1423/202 T-line video doorphone table-top assembly base. Transparent plexiglass.AV1423/203 T-line video doorphone table-top assembly kit with additional buttons AV1407/50 or AV1407/51. Transparent plexiglass.
