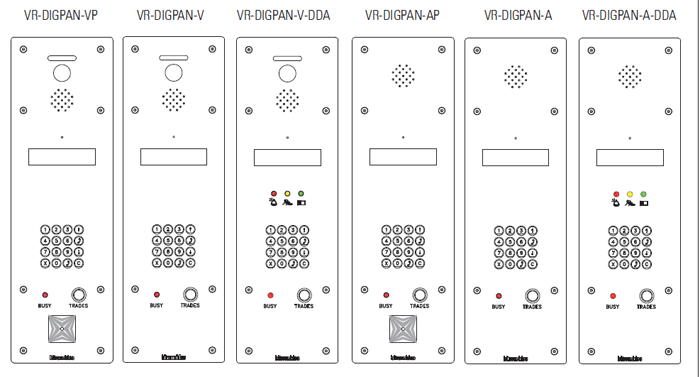

VR-DIGIPANA-P VR Diginox Digital Audio Panel with Prox tag cut out

The VR Dig-Inox range of audio and video digital dial entry panels provides a stylish and
vandal resistant solution for the larger blocks of apartments where a functional panel would
become too large. The panels are manufactured from high quality 316L stainless steel and
have a brushed finish. They use the same trusted “5-wire” video technology and “1+n”
technology for audio systems as the rest of the range but utilises 10 way decoders that can
be located up the building. The decoders use a separate data bus to switch the call to the
required apartment providing complete isolation of the apartments when not in use.
The call module in the panel can handle calls to up to 240 apartments and callers can scroll
through the directory or enter the apartment number and press the call button using the 16
button blue backlit keypad. This keypad can also be set to act as a coded access keypad to
allow residents keyless access to the building. Instructions and status messages are
displayed on the blue LCD display to communicate with the caller. The panels features a
“busy” LED which informs the caller if another call is in progress on the same riser from
another entrance. A “trades” button is also included to allow connection to a time clock for
timed access for services and trades.

Panel dimensions: 150mm wide x 480mm long Back box dimensions: 130mm wide x 460mm long x 60mm deep
