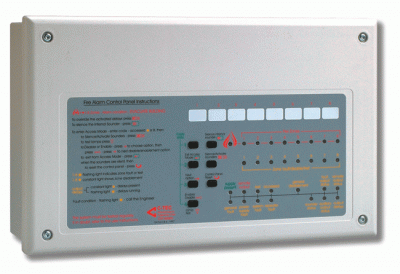

C-Tec CFP LPC Approved EN54-2/4 2 - 8 Loop Panels

C-Tec CFP LPC Approved EN54-2/4 2 - 8 Loop Panels
  Zoom
Our Price:  £125.13
List Price:  £148.08
Saving Of:  £22.95 (15%)
(Exc. 20% VAT)(£150.16 Inc. VAT)
+
Variants:

Catalogue No:  CFP702-4/LPC
Brand:  C-Tec

Current Item:



Click for delivery info

C-Tec

Brochure

Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

CFP 2-8 Zone EN54-2/4 LPC Approved fire panel

Brochure

Fully compliant with EN54 parts 2 and 4, C-TEC’s CFP conventional fire alarm panel offers an array of user and
installer friendly features.

Supplied in an attractive flush or surface mountable plastic enclosure, 2, 4 and 8 zone versions are available, each featuring four conventional sounder circuits, class change and alert inputs, two fire outputs, a fault output and a reset output.

A wide range of engineering functions are also provided including (depending on the model purchased) selectable zone delays, coincidence and non-latching zone facilities. Comprehensive test and fault finding facilities are also provided
on all variants.

Features

  • Fully compliant with EN54 Parts 2 and 4
  • Available with 2, 4 or 8 zone circuits
  • Four conventional sounder circuits Standard, economy and LPCB approved versions available
  • Installer-friendly design accommodates easy first fix and straightforward maintenance
  • Attractive flush or surface mountable plastic lid and enclosure
  • Auxiliary remote, auxiliary fire, fault and
  • reset outputs
  • ‘Class change’ and alert inputs
  • Low quiescent current
  • Intuitive user-friendly interface
  • Multiple indicators
  • End of line units included (one per zone)
  • Optional keyswitch or push button access code entry to Access Levels 2 and 3
  • Integral 1.5A switch mode PSU
  • Detector and sounder circuits share common negative allowing straightforward three-wire retro-installation
  • Ancillary connections provided for up to eight two-wire repeaters (one CFP761 network driver card required per system) and optional CFP relay boards.
  • (Ancillary connections are not provided on CFP economy panels)
  • Wide range of engineering functions including (dependent on model purchased) zone test, coincidence, zone delay and non-latching zones. See chart below for details.

CFP ECONOMY EN54 LPC Approved FIRE PANELS

Include all CFP standard panel features except coincidence & non-latching zone facilities.

CFP702-4/LPC CFP 2 zone panel, LPCB approved to EN54-2/4, does not extend, code entry
CFP704-4/LPC CFP 4 zone panel, LPCB approved to EN54-2/4, does not extend, code entry
CFP708-4/LPC CFP 8 zone panel, LPCB approved to EN54-2/4, does not extend, code entry
