GFE Manual Call Point Addressable

Zoom

Our Price:	£30.51
List Price:	~~£35.40~~
Saving Of:	£4.89 (14%)

(Exc. 20% VAT)(£36.61 Inc. VAT)

Catalogue No: MCPA-KAC
Brand: Global Fire

Availability:

Delivery Information

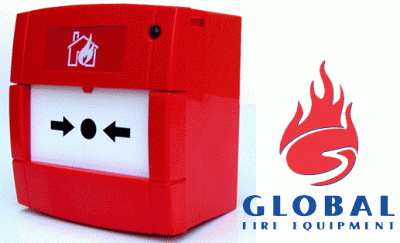

Global Fire Equipment Addressable Manual Call Point

GFE MCPA-KAC Addressable Manual Fire Call Point

The MCPA-KAC is an Analogue Addressable Manual Call Point, designed and manufactured to comply with
EN-54 part 11, compatible with all GFE Addressable Control panels.

GFE enhanced communications mechanism the typical response time, when in alarm, is approximately one second, depending on the number of call points connected to the device loop.

A bi-colour LED flashes Green when the unit is interrogated by the control panel and is illuminated Red when in Alarm. The command to illuminate the Red LED is emitted by the control panel in response to activation of the individual call point thus confirming that the Alarm signal has been received at the control panel. The individual address, up to 125, of each call point is set via an eight way DIL switch.

GFE call points are suitable for surface and flush mounted and it can be easily reset using the supplied key after activation. Optionally it can be supplied complete with a hinged flap which protects the trigger element from accidental activation and reduces malicious activations as two actions are required in order to activate the device.
