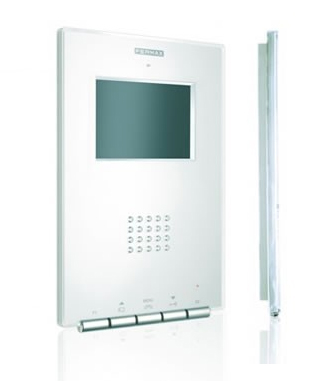

Fermax 5611 Colour 4+N iLoft Monitor

Zoom

Our Price:   £263.73 List Price:   £350.00 Saving Of:   £86.27 (25%) (Exc. 20% VAT)(£316.48 Inc. VAT) Catalogue No:  5611-Fermax Brand:  Fermax Availability:      Delivery Information Tweet

Fermax 5620 VDS iLoft Colour Monitor

Video door entry COLOUR monitor. TFT screen 3.5".
Installed in homes, lets you communicate with the outside panel, open the door and see the visitor on the built-in screen .

The prestigious designers’ association ADI-FAD awarded the iLOFT the “Delta Selection 2007” seal of approval, acknowledging its innovative value, conceptual renovation, formal elaboration and manufacturing quality. This monitor will mean an important growth in top of the range home projects.

New materials. Lightweight. Transparent. Subtle.
Pure lines. A silhouette suspended on the wall, faintly outlined: iLoft, the most innovative FERMAX video door entry system. Fermax’s proposal for the new digital home, a monitor that fits in with today’s surroundings. iLoft achieves the perfect balance between the functional needs for security and communication between the home and the access to the building, and elegance and integration with the new indoor architecture.

Manufactured with new materials where the polycarbonate transparent glass covering the whole surface stands out, iLoft is a video door entry with a 3.5" colour screen that is totally embedded in the wall.

Compact. Extra-flat line equipment, where the quality and care of the materials and the simplicity of lines are united to provide an architectural, minimalist and subtle design.

In iLoft we have looked after all the elements, every detail: metallic painted pushbuttons, transparent polycarbonate glass casing covering the whole surface.

Colour video door entry system including 3.5’’ TFT screen and hands-free operation.

Wiring:
- Audio door entry system: 4 common wires + N (1 call wire per home).
- Video door entry system: 7 common wires + 1 video coaxial+N (1 call wire per home).
Maximum distance in the installation based on the cable section used (see technical manuals).

Fermax 5611 4+N Specification

SScreen TFT 3.5".
Resolution: 480 (H) x 234 (V) lines.
Flush Monitor dimensions: 131 (width) x 197 (height) x 60 (depth) mm
Emerges 14 mm from wall once embedded
FERMAX flush-fit box dimensions: 108 (width) x 158 (height) x 45 (depth) mm
Standard flush-fit box dimensions (10x10x5 cm): 114 (width) x 174 (height) x 50 (depth) mm.
Surface Monitor dimensions: 131 (width) x 197 (height) x 34,3 (depth) mm

Power supply:
- Audio: 12 Vac
- Video: 18 Vdc


Door release and guard unit call button.
Auto-on button for main and secondary camera activation (sequentially).
Button to start communication.
Button to end communication.
Call volume control
Colour, brightness and contrast control.
Door bell: for direct house call button connection to monitor/telephone.
Selectable call tunes.
With 2 pushbuttons for additional functions (without functions assigned).
Private communication. Conversation secrecy.
Totally hands-free operation; once the outdoor panel-home channel is activated, communication is simultaneous (full duplex).

Consumption:
- in standby: 15 mA.
- in call: 300 mA
- active: 400 mA
