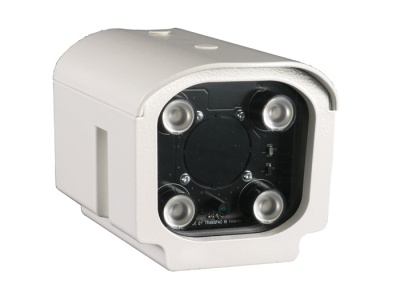

Genie CCTV TPH-IR4 IR Illuminator
Product Overview
High Intensity Infra-Red Illuminator, 4 x High Power Infra-Red 45-Degree LED's, Maximum Range of 35 Metres, AC24V 1A. Fits Directly Underneath, or to Either side, of all Genie TPH Housings. Can also be used Standalone in Conjunction with a BR-16 bracket.
Key Features
- High Power LEDs
- 4 Piece LED Assembly
- Robust and Impact Resistant
- Die-Cast Aluminium Construction
- Tamper Proof Glass Window
- Two Mounting Options; Sideways or Underneath
- IR Light Distance up to 35 Metres
- Energy Efficient Compared to Mains Driven Bulbs
- Automatic Light Sensor Control
- Weatherproof – IP66 Rating
- 850nM Wavelength
- Use in Conjunction with Genie TPH Series Housings
- 24V AC
The Genie range of High Power Infrared Illuminators can be used with the TPH range of Camera Housings. In addition to mounting underneath or alongside the housing, the units can be used stand alone with a BR-16; a semi cable managed wall mount bracket for TPH Housings and TPH-IR LEDs.
Technical Specification
Model Number
| TPH-IR4
|
| Illumination Distance | Maximum 35 Metres |
| Infra-Red LED’s | 4 x High Power @ 850nM |
| Infra-Red Beam Angle | 45-Degrees |
| Infra-Red Control | Adjustable AutomaticCDS Light Sensor |
| Power Consumption | 1A |
| Power Supply | AC 24V |
| Operating Environmental Temperature | -20°C ~ +45°C |
| Operating Humidity | 10% ~ 85% |
| Finish | Light Ivory PowderCoat & Stove Finished |
| Temper Glass Thickness | 4mm |
| Dimensions (W x H x D) | 120 x 115 x 175 mm |
| Weight | 1500g |
