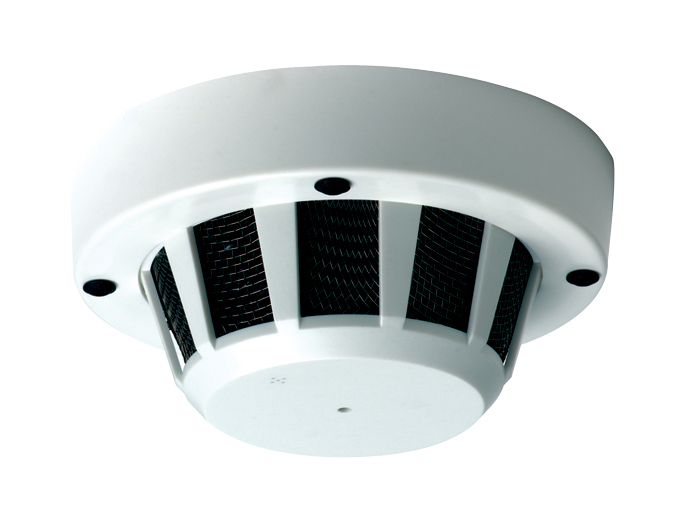

GC3SMO Colour Smoke Detector Case With Camera
Product Overview
Standard Resolution Colour Camera in Smoke Detector Case, 380TVL, 1/3" Sony CCD, 0.5 Lux, 12V DC 100mA, 2.1mm – 16mm Lens Options Sideways View.
Key Features
- Sony 1/3” Interline Transfer Colour CCD
- Automatic Gain Control
- Backlight Compensation
- Smoke Detector Case with Sideways View
- Wide Range of Lens Options (2.1mm to 16mm), 4mm Fitted as Standard
- 12V DC
Techncial Specification
| Model Number | GC3SMO |
| Image Sensor | Sony 1/3-inch InterlineColourCCD |
| Horizontal Resolution | 380TVLColour |
| Electronic Shutter | 1/50 |
| Sensitivity | 0.5 Lux @ F1.2 |
| Signal To Noise Ratio | Greater than 48dB (AGC Off) |
| White Balance | Automatic |
| Lens Options | 2.1mm to 16mm |
| Power Consumption | 100mA |
| Video Output | 1V p-p ~ 75 Ohm |
| Dimensions (D x H) | 130 x 58 mm |
| Power Supply | 12V± 10% |
| Electrical | Built-in Reverse Polarity Protection |
| Operating Conditions | Temperature: -10°C ~ +50°C, Humidity: 10% ~ 90% RH |
