Comelit iCom A/V unit Camera Kits

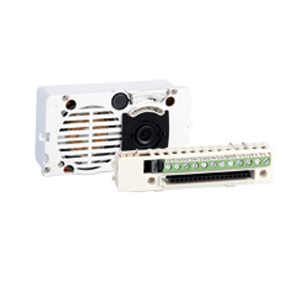

iCom Colour 4680KC audio/video group for kit

• SimplebusKIT system audio-video unit with terminal block complete with front-adjustable wide-angle 1/4" colour camera and LED camera illumination.
• Complete with terminal block and digital audio management system with Eco-cancelling, watertight loudspeaker and electret microphone; loudspeaker volume can be adjusted from the front.
• Complete with microprocessor and DIP SWITCH with 8 positions for programming calls to users.
• Audio-visual indications for disabled individuals assistance request can be activated via programming.
• 33Vdc power supply via special power supply unit.
• On-board electronic lock-release function (3A), plus C, NC, NO 10A relay contacts.
• For use in modules Art. 33410, 33411 and 33412.
• Dimensions:102mm x 55mm x 38mm.
• Timed lock-release input and door open indication.

iCom audio/video unit 4680C with color camera for Simplebus color cabling

• Simplebus Color system audio-video unit with terminal block complete with front-adjustable wide-angle 1/4Î colour camera and LED camera illumination.
• Complete with terminal block and digital audio management system with Eco-cancelling, watertight loudspeaker and electret microphone; loudspeaker volume can be adjusted from the front.
• Complete with microprocessor and DIP SWITCH with 8 positions for programming calls to users.
• Audio-visual indications for disabled individuals assistance request can be activated via programming.
• 33Vdc power supply via special power supply unit Art. 1595.
• On-board electronic lockrelease function (3A), plus C, NC, NO 10A relay contacts.
• For use in modules Art. 33410, 33411 and 33412.
• Dimensions: 102x55x38 mm.
• Compatible with all SBTOP functions and products.
• Allows call addressing for up to 120000 users.
• Timed lock-release input and door open indication

Audio/Video unit 4673 with colour camera for traditional cabling

Audio-video unit with traditional wiring with terminal block complete with front-adjustable wide-angle 1/4" CCD colour camera and LED camera illumination
Complete with audio speaker unit featuring a double amplifier, waterproof loudspeaker and electret microphone; microphone and speaker volume can be adjusted from the front

iCom Audio/Video unit 4680 with black and white camera for Simplebus cabling

• Simplebus system audio-video unit with terminal block complete with front-adjustable wide-angle 1/4" black and white camera and LED camera illumination.
• Complete with terminal block and digital audio management system with Eco-cancelling, watertight loudspeaker and electret microphone; loudspeaker volume can be adjusted from the front.
• Complete with microprocessor and DIP SWITCH with 8 positions for programming calls to users.
• Audio-visual indications for disabled individuals assistance request can be activated via programming. 33Vdc power supply via special power supply unit Art. 1595.
• On-board electronic lockrelease function (3A), plus C, NC, NO 10A relay contacts.
• For use in modules Art. 33410, 33411 and 33412.
• Dimensions: 102mm x 55mm x 38mm.
• Compatible with all SBTOP functions and products.
• Allows call addressing for up to 120000 users.
• Timed lock-release input and door open indication

iCom B/W audio/video unit 4680K with camera for kit

SimplebusKIT system audio-video unit with terminal block complete with front-adjustable wide-angle 1/4Î colour blackand white and LED camera illumination. Complete with terminal block and digital audio management system with Ecocancelling, watertight loudspeaker and electret microphone; loudspeaker volume can be adjusted from the front.
Complete with microprocessor and DIP SWITCH with 8 positions for programming calls to users. Audio-visual indications for disabled individuals assistance request can be activated via programming. 33Vdc power supply via special power supply unit.
On-board electronic lock-release function (3A), plus C, NC, NO 10A relay contacts. For use in modules Art. 33410, 33411 and 33412. Dimensions: 102x55x38 mm. Timed lock-release input and door open indication
