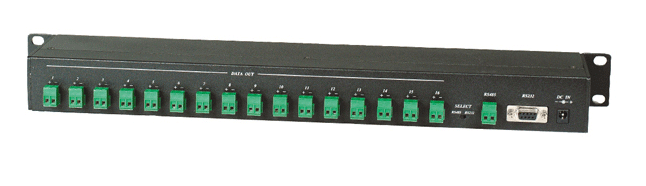

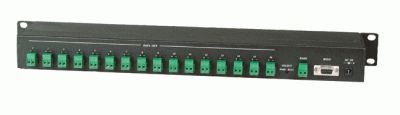

Genie CCTV RS016 Serial Star Wired Data Distributor

Genie CCTV RS016 Serial Star Wired Data Distributor
Zoom  Zoom
Our Price:  £128.17
List Price:  £260.62
Saving Of:  £132.45 (51%)
(Exc. 20% VAT)(£153.80 Inc. VAT)

Catalogue No:  RS016
Brand:  Genie CCTV

Availability:  <a href='/delivery.html' target='_blank'><font color='#ff0000'>Delivery Information</font></a> <br>  Delivery Information

Genie CCTV

RS016 Data Transmission

Product Overview

Serial Star Wired Data Distributor, 1 x RS232 or 2 x RS485 Inputs, 16 x RS485 Isolated Outputs, 1U High, 19-Inch Rack Mounting Panel, DC12V 350mA, Built-In Surge Protection, Power Supply Included.

Key Features

  • Serial Star-Wired Data Distributor
  • 1 x RS232 Input and 2 x RS485 Inputs; Only one Can be Active
  • Transmits/Receives up to 1200m with Twisted Pair Cable
  • Built-In Surge Protection
  • Inputs and Outputs are Isolated
  • Can be Cascaded to other Serial Distributors
  • 19-Inch Rack Mounting Unit, 1U in Height
  • DC12V Regulated Power Supply Included

Technical Specification

Model Number
 RS016
 Data Inputs 1 x RS232 & 2 x RS485 Terminal Block
 Data Output  16 x RS485 Terminal Block
 Data Output Interface RS485
 Power Supply DC12V
 Power Consumption 350mA
 Operating Temperature  0 ~ 45°C
 Dimensions (W x H x D )  482 x 44 x 100mm
 Weight 1000g
Material
 Black Metal Case
