Digiway Spares List

Zoom

Our Price:   £71.48 List Price:   £100.11 Saving Of:   £28.63 (29%) (Exc. 20% VAT)(£85.78 Inc. VAT) Variants:    Articulated Arm Kit  Sliding Arm & Guide Kit  30mm Neck Extension & Bolt  55mm Neck Extension & Bolt  Electronic Card + RF Receiver AM  Couple right & left plugs (end caps)  Guide Plugs  Aluminium Cover  12VDC 1.2AH Pb Battery  Battery cables & fuses  Sliding Block  Packaging for Arms  Central Plug  User Manual  Assembling Screws Kit  Battery Holder  Gearbox fixing screws Kit  Gear Box with Motorshaft Catalogue No:  DWKBA Brand:  Digiway Availability:      Delivery Information Tweet Download Data Sheet

Digiway Automatic Door Operator (Spares List)

DWSE30 and DWSE

30 mm and 50mm Extension suitable for inward and outward opening Digiways with chrome plated finish.

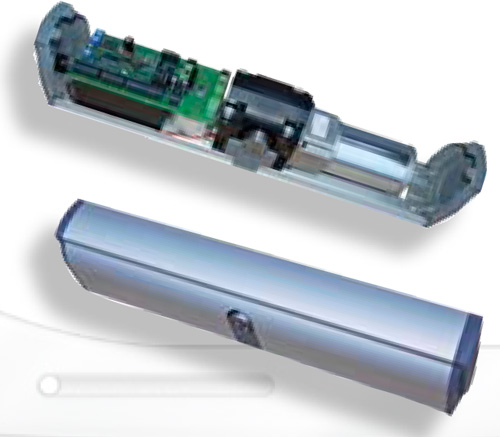

The DIGIWAY automatic door operator from the CDVI Group is a self contained unit for motorised opening and closing of single and double leaf doors. The unit is mains electricity powered but contains a battery backup for 600 operations in the event of a power cut.

The DIGIWAY features self learning operation and has a built in radio receiver for additional radio control use. The system can be triggered by a simple push button or from any access control system. Additionally, an electric lock can be added and controlled by the DIGIWAY unit.

The DIGIWAY is a medium duty use rated unit allowing up to 600 operations a day.

When double leaf rebated doors are required to be automated two units can be used in conjunction via the simple two wire coupling which controls the opening and closing sequences logically for both leaves.

Logical connections exist for lock control, emergency stop and operation start.

The DIGIWAY unit has controls for opening speed, closing speed and open before close pause.

Current sensing is incorporated in the unit in the event of obstacles in the opening and closing sequence. An override switch is included to turn the unit off, keep open and normal automatic operation. There is also a Push & Go feature will allows a small light pressure to be applied to the door start the automated opening sequence.

AUTOMATIC DOOR OPERATOR

Suitable for doors:
Inward DWS102SCD or outward DWS102ACD opening,
single or double,
left or right handed,
with fail safe or fail secure locking.

Designed and developed for ease of access into residential, commercial and public buildings.

RAL Colours available (please specify)

Digiway offers reliability, durability and aesthetics:

• - Electronic controls with built-in radio receiver
• - Electronic position sensing and control
• - Detection and memory of obstacles during travel
• - Electronic calculation of speed and movement
• - Compatible with all "trigger" devices: radio transmitters, keypads, access control,exit buttons, PIR exit/entry detectors, infra-red cells….
• - Hands-free, long distance capability via the Digitag LR range
• - Optional operating modes : automatic, restricted or push and go
• - 240Vac single phase, with standby battery to ensure operation in times of mains failure
• - Meets all required standards and directives
