Miniature Multi Function Radio Transmitter

Zoom

Our Price:   £18.37 List Price:   £26.24 Saving Of:   £7.87 (30%) (Exc. 20% VAT)(£22.04 Inc. VAT) Variants:    Transmitter Only  Transmitter Receiver Kit Catalogue No:  SETMC1C9V Brand:  Digicode Warranty:  2 Years Availability:      Delivery Information Tweet

Multi Purpose Radio Transmitter

SETMC1C9V

OPTION-RADIO is a new product which free’s up the internal circuitry of standard wireless transmission devices, to allow you to create your own devices. Supplied as a “wired” transmitter pcb, any normally open device going closed momentarily, will trigger the radio signal. Ideal for remotely sited disabled buttons, annunciation devices etc, in fact
anything that operates a switch can be made a radio control - the transmitter is compatible with all our receivers.

1. Connect the battery

2. Connect the switch

3. Start Transmitting

Its that simple!!

.

OPR-KIT is the Option-Radio kit which allows you to convert any of the DDA switches into a radio product - wire free. Simply adding the transmitter to the switch and placing the receiver in a convenient location, activation of the DDA switch will transmit a signal to the receiver - ideal for areas where wiring is difficult or labour intensive. In fact, any switching device can be converted to radio.

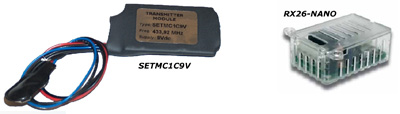

SETMC1C9V is the transmitter pcb, with 2 wires for the switch, 2 wires plugged for the battery and 1 wire as the
antenna.

Frequency: 433.92 Mhz AM
Battery type: 9V 6LR61
Range: 100 to 200m in open space
Dimensions: 54 x 29 x 6mm
Temperature: -20°C to +55°C
Weight: 10g

OPR-KIT Supplied in kit form consisting 1 x SETMC1C9V and 1 x RX26-NANO receiver

Radio Controls

Erone Radio Control are high quality well priced radio transmitters & receivers operating in the licence exempt 433.92Mhz band. Transmitters can be supplied in 1, 2 or 4 button types with a range of case styles. All transmitters have replaceable low cost batteries. Erone transmitters utilise code hopping technology for secure encoded transmissions.

Select from a full range of radio transmitters and receivers, all carrying a 24 month warranty.

The transmitters can be supplied in various forms of design and operation, some being traditional styling,
others being more dynamic.

The receivers are available as standard, external and “power”, which means higher switching through the
relays.

Additionally, there is a new keypad transmitter and 500 user receiver to provide a more secure system for
access control type applications.

• 2-4 Channel Transmitters
• 2-4 Channel Receivers
• Rolling or Fixed Codes
• Ergonomic Designs
• Various Models
• 100-200 Metre Range
• Extended Distance Options
• Keypad Transmitter
• Wall Mounted Transmitters
• External & Power Receivers
• Multi-User Systems
• 2 Year Warranty

Product Codes

RX39-433                STANDARD RECEIVER, 100 USERS, 2 PULSE RELAYS, FIXED CODE
RX26-433I               STANDARD PLUS RECEIVER, 85 USERS, 2 PROGRAMMABLE RELAYS, ROLLING CODE
RX264-Z1                1-CHANNEL EXTERNAL RECEIVER, 85 USERS, ROLLING CODE, IP65
RX264-Z2                2-CHANNEL EXTERNAL RECEIVER, 85 USERS, ROLLING CODE, IP65
RX264-Z4                4-CHANNEL EXTERNAL RECEIVER, 85 USERS, ROLLING CODE, IP65
RX26-433K              ACCESS RECEIVER, 500 USERS, FULLY PROGRAMMABLE, ROLLING CODE
RX26-433C              POWER RECEIVER, 85 USERS, 2 x 3.5KW PROGRAMMABLE RELAYS, ROLLING CODE
RX26-433P              MOTOR RECEIVER, 100 USERS, 750W ASYNCRONOUS MOTOR OUTPUT, ROLLING CODE
RX26-433R              MOTOR RECEIVER, 100 USERS, 400W ASYNCRONOUS MOTOR OUTPUT, ROLLING CODE
TX26-E2                  STANDARD TRANSMITTER, 2 CHANNELS, ROLLING CODE
TX26-E4                  STANDARD TRANSMITTER, 4 CHANNELS, ROLLING CODE
TX26-E2M               MASTER TRANSMITTER, 2 CHANNELS, ROLLING CODE
TX26-TM                 WALL MOUNT TRANSMITTER, 2 CHANNELS, ROLLING CODE
TX26-AM2-BLUE     MINI TRANSMITTER, 2 CHANNELS, ROLLING CODE, BLUE
TX26-AN2-BLACK    MINI TRANSMITTER, 2 CHANNELS, ROLLING CODE, BLACK
TX26-AM2-RED       MINI TRANSMITTER, 2 CHANNELS, ROLLING CODE, RED
TX39-E2                 STANDARD TRANSMITTER, 2 CHANNELS, FIXED CODE
TX39-E4                 STANDARD TRANSMITTER, 4 CHANNELS, FIXED CODE
DIGIKEY-433          KEYPAD TRANSMITTER, 10 CHANNELS, 3.6VDC
SEA433                 TUNED ANTENNAE, 3.5M SHIELDED CABLE
SEL2641-MEM       BACKUP MEMORY MODULE FOR 500 USER ACCESS RECEIVER
SEL2641-KIT          CABLE KIT FOR DATA TRANSFER OF 500 USER ACCESS RECEIVER
S2TR2641E2HT      TRANSMITTER, 2 CHANNELS, ROLLING CODE WITH BUILT-IN HID PROXIMITY TAG
