Fermax 3260 2/W VDS Mini Distributor

Catalogue No: 3260
£29.92
£44.00
Saving Of
£14.08 (32%)
(Exc. 20% VAT)
(£35.90 Inc. VAT)
+
Fermax
Information

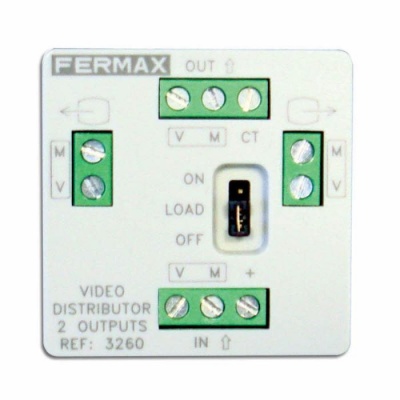

Fermax 3260 2/W VDS Mini Distributor

The mini video distributor is designed to be located within mechanism housing or in areas with little space, above all in systems where audio is being replaced with video, such as ADS without the coaxial (VDS).

Its fundamental characteristic is that it occupies very little space and accommodates up to 1.5mm of section cabling. It is not recommended for systems with coaxial cables as it is difficult to fasten in place.

It allows the video signal (VDS) be received by the floors. It includes the option of adding or removing the final load to adapt the lineÕs impedance. It also allows the option to leave the distributor powered at all time, by way of 18Vdc charge from the VDS power supply or alternatively via the Ct signal from the monitors receiving the video signal, which only works when the monitors are activated.

Specifications
  • Power supply: 10-18 VDC
  • CT: control output for the activation of the camera and other devices, powered via the Ç+È distributor terminalÕs monitor Ct
  • Active Consumption: 25 mA
  • Output Impedance to be selected with the JP1 Jumper: 75 ohms
  • Video input: 0.8-1.6 Vpp
  • Output Tension: 0.8 dB
  • Bandwidth: 8 MHz
  • Body Size: 44 x 44 x 16 (hwd mm)
