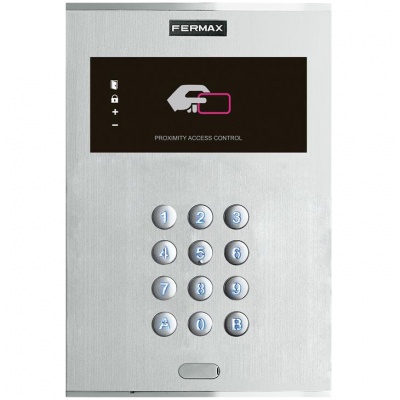

Fermax 6995 Dual Keypad and Prox reader

Fermax 6995 Dual Keypad and Prox reader
  Zoom
Our Price:  £345.10
List Price:  £507.50
Saving Of:  £162.40 (32%)
(Exc. 20% VAT)(£414.12 Inc. VAT)
+

Catalogue No:  6995
Brand:  Fermax

Current Item:



Click for delivery info

Fermax


Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

Fermax 6995 Dual Keypad and Prox reader

* Dual technology access control reader: proximity and keypad in the same panel.
* Stand-alone or joint operation for greater security.
* Stand-alone operation:
- Proximity - lets you open the door by displaying a proximity card or key ring.
- Keypad - lets you open the door by entering a previously programmed 6 digit code.
* Joint operation for greater security: card + PIN code.
- Reader that lets you open the door with a proximity card or key ring and a 4 digit PIN code.
* Proximity reader using built-in dipswitch array (SW2) for operation in a stand-alone or centralized system.

OPTION 1: Set up as CENTRALIZED MDS-CAC.
* Proximity reader with capacity up to (depending on operation selected):
- 1020cards/user key rings/keypad codes/card+PIN code with the MDS Central Unit (ref. 2405).
- 2048 cards/user key rings/keypad codes/card+PIN code with the CAC Central Unit (ref. 4410).
* Audio and visual confirmation by code acceptance or rejection signal LEDs.
* Integrated in aluminium panel.
* Flush mounting (ref. 8854, box included) or surface (ref. 7064, optional).
* Recommended for interiors and exteriors.
* Reader and controller integrated in the same module.

OPTION 2: CENTRALIZED setup with Wiegand 26 protocol.
* At start-up, if the reader is in Wiegand-26 mode:
- the «+» led lights up for 1 second.
* Proximity reader with capacity up to (depending on operation selected):
- 1020cards/user key rings/keypad codes/card+PIN code with the MDS Central Unit (ref. 2405).
- 2048 cards/user key rings/keypad codes/card+PIN code with the CAC Central Unit (ref. 4410).
* Audio and visual confirmation by code acceptance or rejection signal LEDs.
* Integrated in aluminium panel.
* Flush mounting (ref. 8854, box included) or surface (ref. 7064, optional).
* Recommended for interiors and exteriors.
* Requires door controller (ref. 4420) for connection and operation.


OPTION 1: Set up as CENTRALIZED MDS-CAC.
- Stand-alone operation:
- Proximity: activated by proximity card or key ring.
- Keypad: User code (up to 6 digits): «CODE»
- Joint operation for greater security:
- Card+PIN code: activated by proximity card or key ring and a 4 digit PIN code. «CARD + CODE (4 digits)».
- No physical reader-card contact required. Reader distance X cm (card) or Y cm (key ring).
- Acoustic and visual information on actions.
- Door release pushbutton entry, door sensor entry and electric lock relay (C, NO, NC, potential free).
- Reader – Central Unit wiring: 2 wires (power supply) + screened twisted pair (data). In an installation with several readers they can be connected in cascade.
- There is a dipswitch (SW1) to configure:
• Door number (switches 1-5): access/door number (0-31).
• Switch 6: No function.
• Electric lock release (switches 7- 8): depending on installation:
- Door release open timing (sec.) in MDS.
- In CAC configuration by software (functionless switches).
- Connector CN3: Keypad connector.
- Electric locks can be connected directly to the reader and for maximum security installations to the relay decoder.

OPTION 2: CENTRALIZED setup with Wiegand 26 protocol.

- Stand-alone operation:
- Proximity: activated by proximity card or key ring.
- Keypad: User code (up to 6 digits): «CODE + B»
- Joint operation for greater security:
- Card + PIN code: activated by proximity card or key ring and a 4 digit PIN code. «CARD + CODE (4 digits) + B».
- No physical reader-card contact required. Reader distance X cm (card) or Y cm (key ring).
- Acoustic and visual information on actions.
- Wiegand (WG) readers provide the installation with better anti-sabotage security, as neither the door opening mechanism nor the exit button connection are connected. All the devices are connected in the door controller and so are beyond the reach of manipulation. The door controller will be installed indoors (secure zone) and the reader on the outside.
- The reader can be used with other door controllers using Wiegand-26 (WG) protocols.
- Wiring: 7 wires to door controller.
- For more information, please see Door Controller Technical Features.

Programming
Programming is done from PC software PC corresponding to Central Unit installed (ref. 2405 or ref. 4410).
Specifications
Dimensions (HxV mm): 130 x 199
Flush box (HxVxP mm - included): 115 x 185 x 45
Surface box (HxVxP mm - optional): 130 x 199 x 33
Environmental protection (IP): 43
Shock resistance (IK): 07
Power supply (V): 12Vdc
Consumption (mA) without door release/lock: 90
Operating temperature: 0º to 40ºC
