Fermax 2438 VDS Light or Buzzer Activator

Zoom

Our Price:   £82.06 List Price:   £108.90 Saving Of:   £26.84 (25%) (Exc. 20% VAT)(£98.47 Inc. VAT) Catalogue No:  2438-Fermax Brand:  Fermax Availability:      Delivery Information Tweet

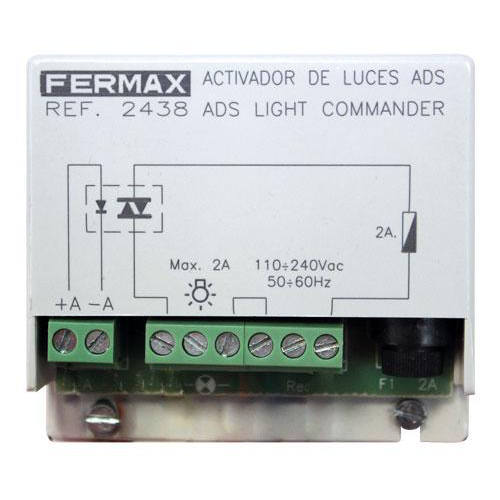

Femax 2438 VDS Light or Buzzer Activator

 For installations that need high power indications when a call is received. This equipment can activate a bell, siren or light bulb when the outdoor panel call button is pressed.

Small size allows installation in electrical cabinets. Can be flush-fit in standard boxes 10x10 cm. With adhesive strips for fixing, or may be screwed directly onto the wall.

VDS system:
Simplified installation audio and video door entry system that does not use house call wires. The call is made by transmission of a digital call code generated by the VDS amplifier.
- In new works, installation can be carried out with the following type of wiring: UTP CAT5 / 5 wire / 3 wire + Coaxial (video).
Lets you manage up to 199 homes, 2 entrance accesses and a central guard unit.
Maximum distance from first access to last home: 200 m.
- In replacement works, the change from analogue entry to video entry system can be done taking advantage of the existing wiring.
The system capacity and distance will depend on the installation wiring.
VDS amplifier comes with voice synthesizer as standard issue.
When the door release is activated a message is heard: “Door open, please close after entering".
The home terminals require simple programming done from the outdoor panel. By means of this programming a call code is assigned to each terminal (telephone or monitor).
Communication is private.
Wiring. Audio: 3-wire bus. Video: UTP CAT5 / 5 wire / 3 wire + Coaxial (video).
Maximum distance from first access to last home: 200 m.

Power supply:110Vac - 240 Vac.
Max. consumption:
Fuse: 2A, 220Vac

Dimensions: 62x70x20 mm (height-width-depth).

Power supply: 18 Vdc
