Catalogue No: 3246Brand: Fermax
Click for delivery info
BUS2 changer module is required in installations with two accesses (audio / video). BUS2 exchanger plates is the device that communicates the active plate with the general bus, thereby isolating, plates or other equipment that can be connected to the bus. BUS 2 system: simplified installation, minimum wiring and powerful features, guaranteeing maximum audio / video signal at all points of the installation. High immunity to external interference. Lets you manage up to 199 homes and 2 entrances. Maximum distance from first access to last home: 250 m.The BUS2 amplifier includes voice synthesizer series. "Door open, please close after entering": When engaged the abrepertas a message is issued. The camera included in BUS2 video entry panels is COLOUR as standard. In each house can be installed up to 2 terminals (2 telephones, 2 monitors or 1 telephone + 1 monitor). The home terminals require simple programming done from the outdoor panel. Through this programming is assigned to each terminal (telephone or monitor) a call code. Communication is private.
Wiring: Audio / Video: 2-wire bus without polarity. CAT2 twisted pair cable for maximum distances and homes capacity is recommended.Maximum distance from first access to last home: 250 m.

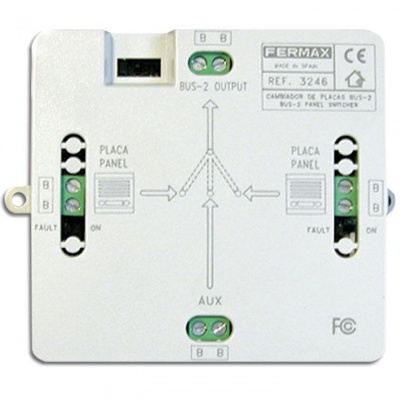

Connections: - PLATE 1. Connection board bus 1. - PLATE 2. bus connection plate 2. - AUX: connection for extension with MDS-BUS2 system: Concierge, General inputs, etc. (Output connection B, B decoder MDS / BUS2). - OUT: output data bus, audio and video monitors / BUS2 phones.Power: 24 VdcDimensions of the packed product: 10,8x9,6x6,4 cmWeight: 0.150 kg
