Fermax 8819 Mini Audio switcher

Fermax 8819 Mini Audio switcher
Our Price:  £26.86
List Price:  £39.50
Saving Of:  £12.64 (32%)
(Exc. 20% VAT)(£32.23 Inc. VAT)

Catalogue No:  8819
Brand:  Fermax

Current Item:


Click for delivery info


Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

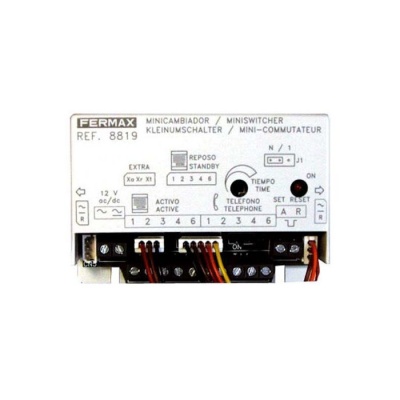

Fermax 8819 Mini Audio switcher


Switchers are needed in facilities with more than one access. They are used to connect the home telephone or monitor with the panel where the call is being made from.

Maximum 7 accesses. 1 switcher is required for each audio/video door access. In installations with 2 accesses, only 1 switcher is needed. There are two models depending on the type of additional access: audio or video entry.

DIN-10 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall. Conventional System: uses wires common to the whole installation plus 1 call wire (or call return) per home..

Recommended in small to medium-sized buildings (up to 50 residents approx), with several accesses and central guard unit. For residential complexes with general entrance and interior blocks.

Wiring audio door entry system 4 common wires + N (1 call wire per home) and 7 common wires + 1 video coaxial+N (1 call wire per home) for video door entry system.
Technical Specififcations:-

Power supply: 12 Vac/Vdc
Consumption: 40 mA
Timing: 90 seconds approx
DIN 10 dimensions: 62mm x 85mm x 20mm
