Fermax PSU Selection

Fermax PSU Selection

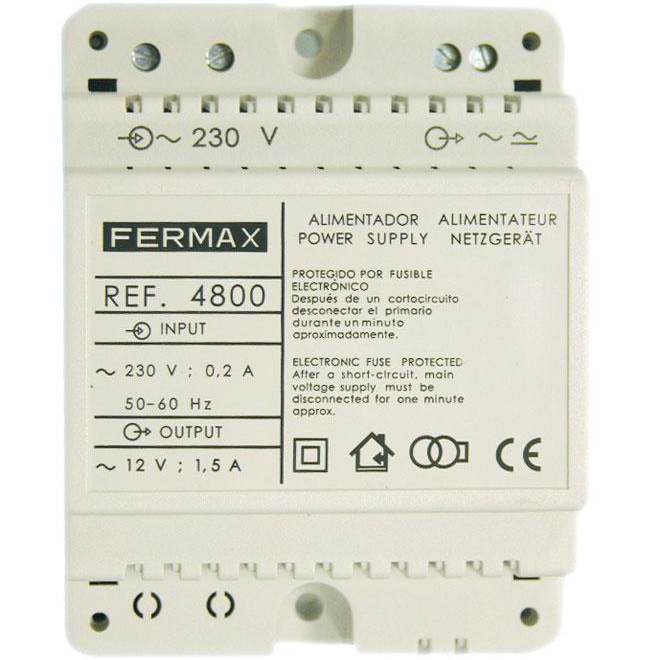

4800 12VAC 1.5A

DIN-4 rail format for easy installation inside an electrical equipment box, or can be screwed directly onto the wall. Used to power the different equipment in a Fermax installation. Constructed in self-extinguishing VO material. Includes a set of covers to protect the connection terminals.

Technical Specifications

Input protection: Electronic limitation for overload and short circuit

Input frequency: 50-60 Hz.

Technology: GENERICA

Weight: 0.588 kg

Measures of the packed product: 6,3x10x7,2 cm

EAN 13: 8424299048000

4810 12VAC+18VDC 1.5A

DIN-10 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall. Used to power the different equipment in a Fermax installation. Constructed in self-extinguishing VO material. Includes a set of covers to protect the connection terminals.

Technical Specifications

Input frequency: 50-60 MHz.

With two function indicator LEDs:

• ON LED lit: indicates that the power supply is working.
• OVERLOAD LED lit: indicates maximum current exceeded (it will be necessary to reduce the installation load or add additional power supply/supplies).
• ON LED+OVERLOAD blinking: indicates short circuit.

Technology: GENERICA

Weight: 0.83 kg

Measures of the packed product: 6,5x18,1x9,6 cm

EAN 13: 8424299048109

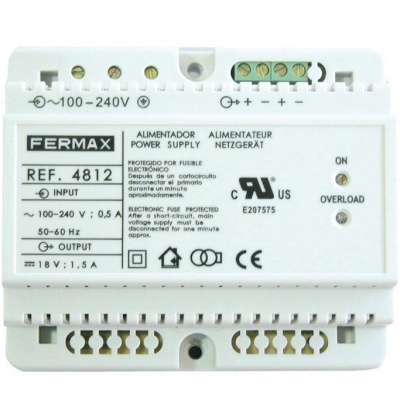

4812 18VDC 1.5A

DIN-6 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall. Used to power the different equipment in a Fermax installation. Constructed in self-extinguishing VO material. Includes a set of covers to protect the connection terminals.

Technical Specifications

Input frequency: 50-60 MHz.

With two function indicator LEDs:

• ON LED lit: indicates that the power supply is working.
• OVERLOAD LED lit: indicates maximum current exceeded (it will be necessary to reduce the installation load or add additional power supply/supplies).
• ON LED+OVERLOAD blinking: indicates short circuit.

Technology: GENERICA

Weight: 0.323 kg

Measures of the packed product: 6,5x11,3x9,6 cm

EAN 13: 8424299048123

4813 12VDC 2A

DIN-6 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall. Used to power the different equipment in a Fermax installation. Constructed in self-extinguishing VO material. Includes a set of covers to protect the connection terminals.

Technical Specifications

Input frequency: 50-60 MHz.

With two function indicator LEDs:

• ON LED lit: indicates that the power supply is working.
• OVERLOAD LED lit: indicates maximum current exceeded (it will be necessary to reduce the installation load or add additional power supply/supplies).
• ON LED+OVERLOAD blinking: indicates short circuit.

Technology: GENERICA

Weight: 0.315 kg

Measures of the packed product: 6,5x11,3x9,6 cm

EAN 13: 8424299048130

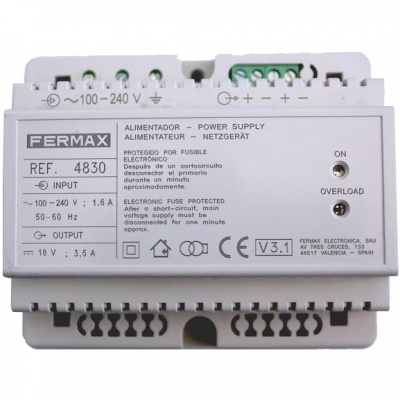

4830 18VDC 3.5A

DIN-6 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall. Used to power the different equipment in a Fermax installation. Constructed in self-extinguishing VO material. Includes a set of covers to protect the connection terminals.

Technical Specifications

Input tension: 110-240 Vac

Output tension: 18 Vdc

Technology: GENERICA

Weight: 0.346 kg

Measures of the packed product: 6,5x11,3x9,6 cm

EAN 13: 8424299048307

4840 24VDC 2A

DIN-6 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall. Used to power the different equipment in a Fermax installation. Constructed in self-extinguishing VO material.
Includes a set of covers to protect the connection terminals. The power supply cannot be connected directly to the bus, given the characteristics of the Bus 2 or DUOX systems, since the power feed and the data go through the same wires. This requires the connection module. The power supply connection module should be connected directly to the bus with the shortest cable distance possible. This module prevents the power supply from disrupting the operation of the rest of the signals that circulate through the system, and it will also allow for more power supplies to be connected if required by the system.

Technical Specifications

With two function indicator LEDs:

• ON LED lit: indicates that the power supply is working.
• OVERLOAD LED lit: indicates maximum current exceeded (it will be necessary to reduce the installation load or add additional power supply/supplies).
• ON LED+OVERLOAD blinking: indicates short circuit.

Power:

• BUS 2 system: 24 VDC
• DUOX system: 18 VDC

Output current depends on the power supply connected. Power supplies of up to 3.5 A.

BUS 2 system input voltage: 24 VDC.

DUOX system input voltage: 18 VDC.

Technology: DUOX

Weight: 0.347 kg

Measures of the packed product: 6,5x11,3x9,6 cm

EAN 13: 8424299048406

4825 24VDC 2.5A DIN10+Filter

Used to power the different equipment in a DUOX PLUS Fermax installation. Constructed in self-extinguishing VO material. Includes a set of covers to protect the connection terminals. The POWER BUS terminals provide voltage and data. The PREV BUS terminals provides only data. It includes 2 leds: • ON • OVERLOAD: LED indicating maximum current limit exceeded. Reduce the load. LED ON + OVERLOAD blinking indicates short circuit. DIN-10 rail format for easy installation inside an electrical equipment box or can be screwed directly onto the wall.

Technical Specifications

Dimensions DIN-10: 175x90x60 mm

Input voltage: 110-240 Vac

Input frequency: 50-60 Hz

Output voltage: 24 Vdc ±10%

Output current: 2.5 A

Efficiency at maximum load : 87% (for input 230V)

Input protection: NTC fuse and 2. 5A

Output protection: Overload of an electronic short circuit limitation

Working temperature -5 ~ +45 ºC

Maximum humidity (without condensation) 95%

Technology: DUOX

Weight: 0.528 kg

Measures of the packed product: 6,5x18,1x9,6 cm

EAN 13: 8424299048253
