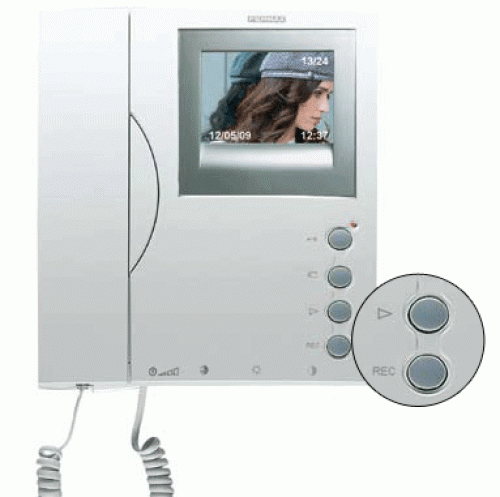

Fermax 3298 Loft Colour Memory Monitor 4+N

Zoom

Our Price:   £244.89 List Price:   £325.00 Saving Of:   £80.11 (25%) (Exc. 20% VAT)(£293.87 Inc. VAT) Catalogue No:  3298-Fermax Brand:  Fermax Availability:      Delivery Information Tweet

Fermax 3298 Loft Colour Memory Monitor 4+N

Installed in homes, lets you communicate with the outside panel, open the door and see the visitor on the built-in screen.

A new concept in home monitors. Integrated design, in line with new trends and lifestyles, simple and functional, combining quality and design. The harmony of the gentle, relaxed shapes and the integrated volume concept are the synthesis of LOFT technology and design.
Its purity of line, technology and performance make this equipment an elegant and perfect element for any home.
Made in high impact ABS plastic, with a textured finish for easy cleaning and ultraviolet protection for greater resistance to sunlight.

Conventional System: uses wires common to the whole installation plus 1 call wire (or call return) per home..
Recommended in small to medium-sized buildings (up to 50 residents approx), with several accesses and central guard unit. For residential complexes with general entrance and interior blocks.
Wiring:
- Audio door entry system: 4 common wires + N (1 call wire per home).
- Video door entry system: 7 common wires + 1 video coaxial+N (1 call wire per home).
Maximum distance in the installation based on the cable section used (see technical manuals).

Fermax 3298 Specification

Screen TFT 3.5".
Resolution: 480 (H) x 234 (V) lines.


Terminal has a built-in magnet in the earpiece area that ensures the arm is well fitted and fixed to the base.
This prevents the arm falling off damaging the wall when hanging up and also avoids faults caused in the installation by being badly hung.

Dimensions: 220x203x60 mm (height-width-depth):

Power supply:
- Audio: 12 Vac
- Video: 18 Vdc


Door release and guard unit call button.

Auto-on button for main camera activation.

Call volume control

Colour, brightness and contrast control.

On/off control

Selectable call tunes.

Video memory that automatically memorizes the images caught on camera, from the outdoor panel, when a call takes place. These images can be viewed on the monitor screen later, indicating the date and time they were taken.

With 2 pushbuttons for additional functions (without functions assigned).




Size of product when packed: 27,2x23,9x6,5 cm
Weight: ,88105 kg
