Catalogue No: 7438Brand: Fermax
Click for delivery info

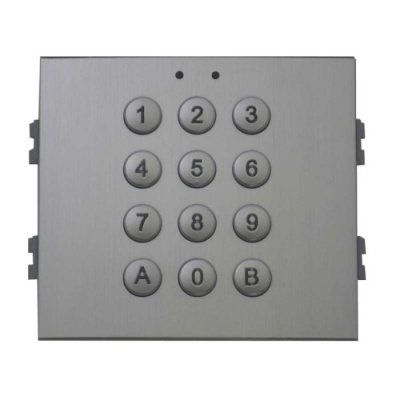

Backlit keypad with signal LEDs. Activates the door release when a code up to 6 digits is entered. Admits 100 different codes that can activate 1 or 2 relays. Power supply 12Vac/Vdc.
Access control module, to be fitted in electronic audio/video entry panels.Telephone type keypad that lets you open the door when a previously programmed 6 digit code is entered.New Cityline Panel: CityLine is the "continuous profile" outdoor panel line. This new panel model is more robust, more luxurious and higher design and functional quality.Colour aluminiumStand-alone Access Control System. For installations where a simple access control is required, with no incidents record, to complement the audio/video door entry system and enable access to the building for residents, for example: offices, small businesses, garages.
Up to 100 user codes- Code length 4 to 6 digits.- Electric lock release activation by Relay2 A (NA,NC). Programmable 1 to 99 sec. or bistable. - Exit button input. - Free access button (trades) input. - Open Collector auxiliary output (150 mA max) to indicate sabotage attempt or door open/forced.- Confirmation by keypad pulsation tone and acceptance or rejection of the code entered.- Programming from the keypad by master code.- Power supply 12 Vac / 12 Vdc - Consumption: 6 mA (standby), 60 mA (active).- Protection IPK 536Size of product when packed: 13,5x10x6 cmWeight: 0,3643 kg
