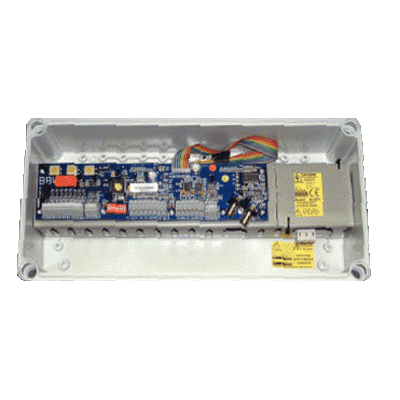

Ganz ZP-RX457-WBX RS485 telemetry reciver weatherproof

Ganz ZP-RX457-WBX RS485 telemetry reciver weatherproof
Our Price:  £436.97
List Price:  £819.00
Saving Of:  £382.03 (47%)
(Exc. 20% VAT)(£524.36 Inc. VAT)

Catalogue No:  ZP-RX457-WBX
Brand:  Ganz

Current Item:


Click for delivery info


Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

Ganz ZP-RX457-WBX RS485 telemetry reciver weatherproof AC

The RX 457 is designed to control fixed speed AC pan & tilt heads via GANZ telemetry control systems operating on RS485.
The receiver offers system designers the option of using traditional P/T/Z heads for applications where it is necessary to specify a range of camera/lens combinations.

  • Simply set up from the control unit, 32 full scenes are programmable. Positioning control of up, down, zoom and focus are available for each scene
  • Built in launch amplifier provides cable loss compensation for optimum picture quality
  • 230Vac operation with options for 24Vac or 110Vac.
  • Inching function provides fine lens control
  • Iris override provided
  • IP67 enclosure.
  • 12Vdc Camera supply provided.
  • PAL/NTSC compatible
  • 8 local alarm inputs and 1 alarm output minimises cabling requirements.
  • Serial port for control of camera functions
  • On screen display with menu programming
  • Simple to install. No specialised knowledge required
