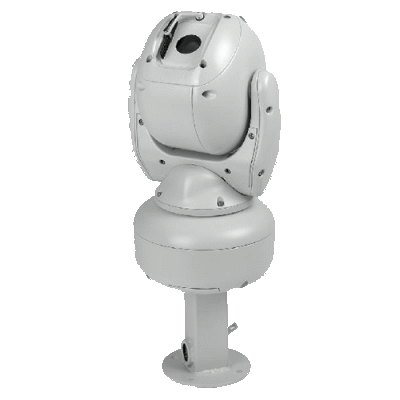

Ganz C-AllView Vehicle Cream finish 18:1 Optical Zoom Camera

(Exc. 20% VAT)(£2,277.88 Inc. VAT)

Catalogue No: C-ADN3VX18YPT-W
Brand: Ganz

Availability:

Delivery Information

Ganz

Ganz C-AllView external Black finish 18:1 Optical Zoom Colour/Mono Camera

Brand	Ganz
Model Code	C-ADN3X18YPT-B
Colour Type	Colour / Monochrome
Chip Inch Size	1/4
Resolution TVL	530
Digital (DSP)	Yes
Dome Type	Continuous Rotation
Sensitivity lux	0.07
Optical Range mm	4.1 ~ 73.8
Rotation Angles^o	360
Presets	32
Back Light Compensation	Yes
Auto Gain Control	Yes
Electronic Shutter range	0.45
S/ N (Signal/ Noise) Ratio dB	50
Synchronisation	Internal / Line Lock
Signal Mode	PAL / NTSC
Video Output	1.0 Vp-p, 75 Ohms
Zoom Ratio	x18
Network Properties	Network Protocols: CBC, OCP, 360 Vision, DeView, Forward Vision, *
Electrical Specifications	Voltage: 20~36 V DC, 14~26 V AC Power Consumption: 30 W
Physical Specifications	Dimensions mm: 220 x 368.2 Weight g: 7,000
Environmental Specifications	Operating Temp ^oC: -20 ~ +50 Protection: IP67
