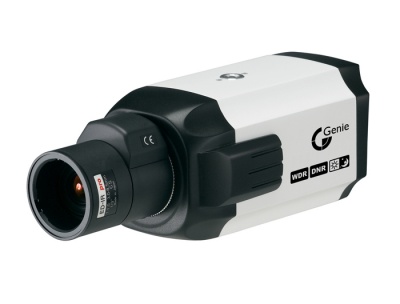

DN83TSPX Pixim Ultra High Resolution True Day/Night WDR Bodied Camera
Product Overview
True Day/Night Ultra High Resolution Bodied Camera, 1/3" Pixim Seawolf Digital Pixel Sensor, 690TVL, Mechanical IR Cut-Filter, 3D-DNR, WDR, Sens-Up, 12 Zones Privacy Masking, UTP, RS-485, Dual Voltage
Key Features
- 1/3” PIXIM Seawolf CMOS Sensor
- Ultra High Resolution, 690 TVL
- Mechanical IR Cut-Filter
- 3D Motion Adaptive Digital Noise Reduction
- Wide Dynamic Range (WDR)
- O.S.D. Menu
- Selectable Gain Control
- Selectable White Balance
- Highlight Function
- Privacy Masking (12 Zones)
- Motion Detection
- Built in UTP
- RS-485 Communication
- Dual Voltage
• Lens not Included
Technical Specification
| Model Number | DN83TSPX |
| Image Sensor | 1/3” PIXIM Seawolf CMOS Sensor |
| Horizontal Resolution (Effective) | 690 TVL (Colour), 800 TVL (Mono) |
| Signal Processing | 17-bit Digital Signal Processing |
| Transfer Format | Progressive with Segmented Frames |
| Sensitivity (F1.2) | 0.1 Lux (Col), 0.01 Lux (Mono) |
| Digital Zoom | 12x Zoom |
| Effective Pixels (H x V) | 758 x 540 |
| Electronic Shutter Speed | 1/50 ~ 1/100,000 Sec |
| Scanning System | 2:1 Interlace |
| S/N Ratio | >50dB |
| Synchronisation | INT/LL Selectable |
| Frequency | Horizontal: 15.625KHz Vertical: 50.00Hz |
| Video Output | 1.0Vp-p~75Ω |
| Day / Night | AUTO / COLOUR / BW / EXTERN |
| 3D-DNR | OFF / LOW / MIDDLE / HIGH |
| Sens-Up | Auto / Off (Selectable limit x2 ~ x32) |
| WDR | LOW / MIDDLE / HIGH / USER |
| O.S.D. | Yes, Built-in |
| Gain Control | OFF / LOW / MIDDLE / HIGH |
| White Balance | ATW / AWB / INDOOR / OUTDOOR / MANUAL |
| Highlight Function | YES |
| Privacy Masking | On/Off (12 Programmable Zones) |
| Motion Detection | ON / OFF |
| Flip | Horizontal / Vertical |
| UTP | Yes |
| Communication | RS-485 |
| Operating Conditions | Temperature: -10°C ~ +50°C, Humidity: 95% RH |
| Power Supply | DC 12V / AC 24V |
| Power Consumption | 490mA / 350mA |
| Dimensions (W x H x D) | 70.2 x 68.1 x 100.5 mm |
| Weight | 270g |
