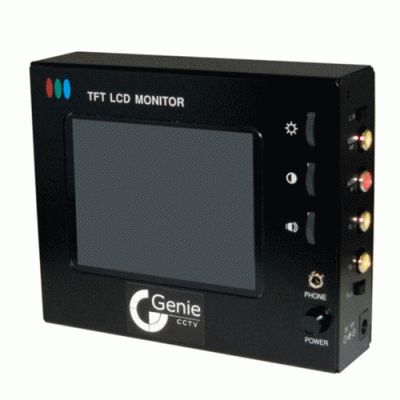

LM-413 4" TFT LCD Surface Mount Monitor
Product Overview
4" TFT LCD Surface Mount Monitor, 2 x Video Input, 1 X Audio Input, Resolution 480 x 234, DC12V, 500mA.
Key Features
- 4” TFT Liquid Crystal Display Monitor
- 2 x Video Inputs and 1 x Audio Input
- Suitable For Wall or Panel Mounting
- Active Matrix Technology
- 30ms Response Time
- DC12V
Technical Specification
Model Number
| LM-413
|
| Display Size (Diagonal) | 4” |
| Active Area (W x H) | 82.1 x 61.8 mm |
| Resolution (H x V) | 480 x 234 |
| Contrast Ratio | 150 : 1 |
| Brightness | 250cd/m2 |
| Response Time | 30ms |
| Video System | NTSC / PAL |
| Power Source | DC 12V, 500mA |
| Video Input | 1V p-p 75 Ohm x 1 RCA x 2 |
| Video Output | 1V p-p 75 Ohm x 1 |
| Audio Input | 1V p-p 10k Ohm x 1 |
| Power Consumption | 500mA |
| Storage Temperature | -20°C ~ 80°C |
| Operating Temperature | 0°C ~ 60°C |
| Dimension (Monitor) (W x H x D) | 139 x 115 x 36 mm |
| Weight | 450g |
