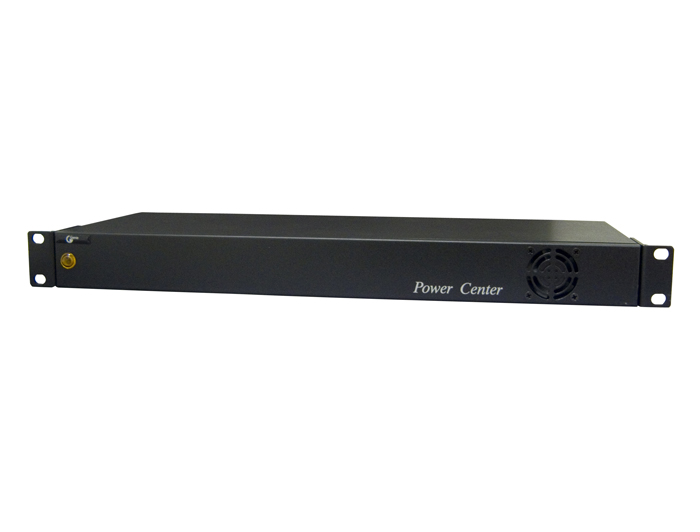

Genie CCTV GPR1616-12R Rack Mount Power Supply

 Product Overview

16-Port DC12V 16Amp Power Supply in 19-Inch Rack Mounting Panel 1U High, 16 x 1A, Regulated Fuse Break Outputs, Mains 230V Input.

Key Features

  • 16 x Regulated 12V DC Outputs
  • 230V AC Input
  • Line Condition LED on Mains Input
  • Individual PTC (Positive Temperature Coefficient) Output Protection
  • Individual Current Protection
  • Automatic Reset Following Short Circuit Condition
  • Built-in “No Fuse” Break for Short Circuit Protection
  • Toroidal Transformer for High Efficiency and Low Temperature Operation
  • Standard 1U 19-inch Rack Mount
  • Supplied with Mains IEC Lead

Technical Specification

Model Number
Input Voltage
230V AC
Output Voltage
Regulated 12V DC @ 16A
Output Current
Nominal 1A perChannel
Output Trip Current
Output Current Protection
1.1A " Max. 2.5A for 4 Seconds
Short Circuit Trip
0.2 Seconds
Surge Protection
Output Reset
Reset Time1 Second
Input Connector
IEC Socket
Output Connectors
Screw Terminal
Total Output Current
16A (Max)
Dimensions (W x H x D)483 x 170 x 44 mm
3.1 Kg
FinishBlack PowderCoated Steel
Storage Temperature
-30° ~ 70°C
Operating Conditions
Temperature: -10°C ~ +45°C, Humidity: 30% ~ 80% RH
