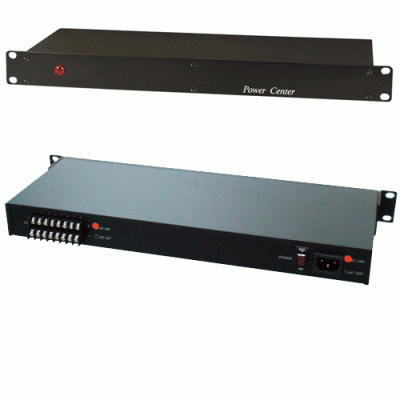

Genie CCTV GPR808 Rack Mount Power Supply
Product Overview
8 Port Power Supply AC 120V/230V to AC 24V / 1Amp (Max) Output, Built-in "No Fuse Breaker", Built-in Short Protection.
Features
- 8 Port Power Supply AC 120V/230V to AC 24V /1Amp (Max) Output
- Each Port Output Current 1Amp (Max)
- Built In “No Fuse Breaker” to avoid Current Overload
- Built in Positive Temperature Coefficient (PTC) for Short Protection and Auto Rework on Each Port
Specification
Model Number
| GPR808 |
| Port | 8 |
| Input Voltage | 230V AC |
| Output Voltage | AC 24V |
| Output Current | 1A Per Port |
| Output Trip Current | 2A Per Port |
| Short Cut Time | 0.2 Sec/ Port |
| Surge Protection | Built-in |
| Cut Current / Time | 2.5A / 4 Sec |
| Resettable Output | AUTO |
| Resettable Output Time | 1 Sec (Min) |
| Total Output Current | 8A (Max) |
| Operating Conditions | Temperature: -10°C ~ +45°C, Humidity: 30% ~ 80% RH |
| Dimensions (W x H x D ) | 437 x 170 x 44 mm |
| Weight | 4 Kg |
