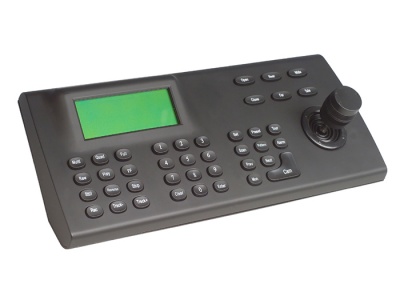

DYN-WW76 Joystick Keyboard For Use With Interceptor PTZ Dome
Product Overview
Joystick Keyboard for use with Interceptor PTZ Dome
Key Features
- 3D Joystick for Simple Manual Operations
- RS 485 Bus Line & Keyboard Controls 31 Cameras
- Supports Interceptor Domes, Genie ASD and PTZ Domes & Other Cameras with Pelco-P and Pelco-D Protocols
- Optimised for Interceptor Domes
- Control Iris, Focus and Zoom
- Call-up Presets, Patterns & Tours
- Large LCD Screen
Techncial Specification
Model Number
| DYN-WW76
|
Input Voltage
| 9V-12V AC/DC
|
Power
| 2.5W
|
Interface
| RS485, 422, 232
|
Frequency
| 2400, 4800, 9600 Bps
|
| Distance | 1.2 KM (RS485/422)
|
Operating Temperature
| Temperature: 0°C ~ +50°C, Humidity: 0 ~ 90% RH
|
Dimensions (W x H x L)
| 165 x 95 x 375 mm
|
Weight
| 1.2 Kg |
