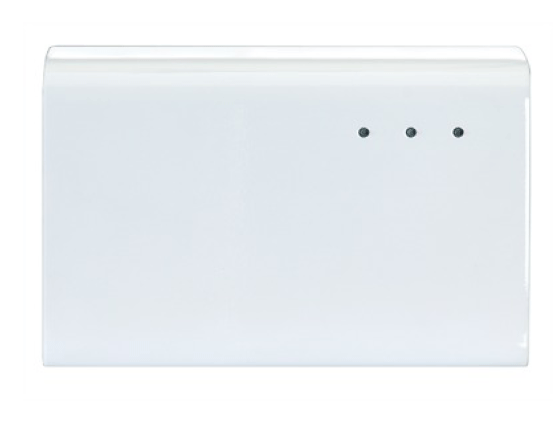

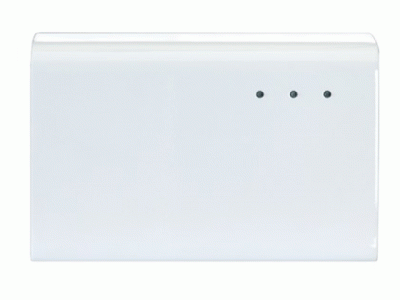

Genie Access ACU-EWX2 1-2 Door Extension Unit

Zoom

Our Price:	£177.05
List Price:	~~£360.02~~
Saving Of:	£182.97 (51%)

(Exc. 20% VAT)(£212.46 Inc. VAT)

Catalogue No: ACU-EWX2
Brand: Genie Access

Availability:

Delivery Information

Genie Access

ACU-EWX2

Key Features

1-2 Door Standalone Control Panel
Expands to 64 Door Network
Local Access In (Off-Line) Mode
Mantrap and Anti-Pass Back
Real-Time Access Monitoring via the PRO Software
DVR & CCTV Integration

Technical Specification

1-2 Door Extension Unit
Operation
Operating Voltage
Current Consumption
Reader Input Ports
Aux Outputs

Aux Inputs

Network Connectivity
Tamper Protection
Material
Dimensions (W x H x D)
IP Rating

Network Door Extension Controller
12 - 15V DC (Regulated)
150mA Maximum
2 (Wiegand)
3x Relays (2x 10Amp & 1x 2Amp)
2x Transistorised
2x Door Monitoring Contacts (N/C)
2x Request to Exit (N/O)
1x Free Input (Opto Isolated)
RS485 (up to 31 Units)
Yes
Steel Housing
129 x 180 x 53 mm
IP31
