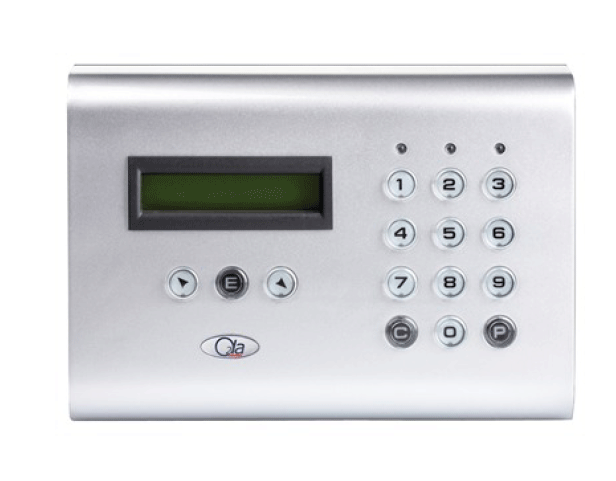

Genie Access ACU-O2LA PRO Master Controller- SOFTWARE INCLUDED

Zoom

Our Price:	£470.94
List Price:	~~£957.63~~
Saving Of:	£486.69 (51%)

(Exc. 20% VAT)(£565.13 Inc. VAT)

Catalogue No: ACU-O2LAPRO
Brand: Genie Access

Availability:

Delivery Information

Genie Access

ACU-O2LA PRO

Key Features

1-2 Door Standalone Control Panel
Expands to 64 Door Network
Local Access In (Off-Line) Mode
Mantrap and Anti-Pass Back
Real-Time Access Monitoring via the PRO Software
DVR & CCTV Integration

Technical Specification

Master Controller- SOFTWARE INCLUDED
Operation
Operating Voltage
Current Consumption
CPU
Outputs
Inputs

PC Connectivity
Network Connectivity
Network Capability
Display
Keypad
User Groups
Reader Groups
Time Zones
Mantrap and Anti-Pass Back
Tamper Protection
Event Memory
Material
Dimensions (W x H x D)
IP Rating

On-Line or Standalone Controller
12 - 15V DC (Regulated)
250mA Maximum
16 Bit Micro-Controller with Flash
3x Relays (2x 10Amp & 1x 2Amp)
2x Rex (N/O) Inputs
2x Door Monitoring Contacts (N/C)
1x Free Input (Opto Isolated)
RS232 (RJ12) 15 Metres
RS485 Connects up to 31 EWX2 Units
LAN /WAN TCP/IP
2 x 16 Character Backlit LCD
12 + 3 Alphanumeric
100
32
16
Yes
Yes
7500 Events
Steel Housing
129 x 180 x 53 mm
IP31
