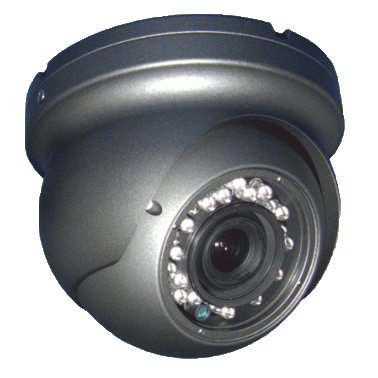

Genie CCTV GD5324V Digital Day/Night Impact Resistant Dome Camera With IR LEDs
Product Overview
Genie CCTV GD5324V High Resolution Digital Day/Night Impact Resistant Mini-Dome, 550TVL, 1/3" Sony CCD, 4-9mm Varifocal Lens, 24 x IR LED's, 0 Lux, 130mA (CDS ON: 420mA Max), Wall or Ceiling Mount, External Lens Adjustment, IP66.
Key Features
- Sony 1/3” Super HAD CCD
- High Resolution 550 TVL
- Surface Mount
- External Varifocal Lens Adjustment
- Totally Flexible Camera Positioning
- Automatic Gain Control
- 24 x IR LED’s, Approx. Range of 15m
- Weatherproof
- IP-66 rated
- Available in Gun-metal Grey or Cream Colours
Technical Specification Genie CCTV GD5324V
Model Number
| Genie CCTV GD5324V |
| Image Sensor | Sony 1/3-inch Super HAD CCD |
| Horizontal Resolution | 550TVL Colour – 752 x 582 Pixels |
| Electronic Shutter | 1/50 – 1/100,000 Seconds |
| Sensitivity | 0.1 Lux @ F1.2 (0 Lux with IR LED’s on) |
| Signal To Noise Ratio | Greater than 45dB (AGC Off) |
| White Balance | Automatic |
| Lens | 4-9mm Varifocal F1.6 |
| Video Output | 1V p-p ~ 75 Ohm |
| Power Consumption | 130mA (CDS ON: 420mA Max) |
| Power Supply | 12V ± 10% |
| IP Rating | IP66 |
| Operating Conditions | Temperature: -10°C ~ +50°C, Humidity: 20% ~ 90% RH |
| Dimensions (D x W) | 96 x 120mm |
