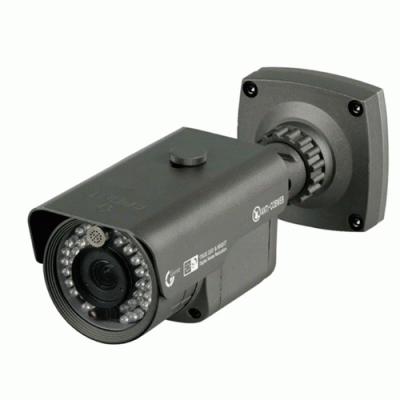

ZD2812IRACW
Intus Ultra High Resolution True Day/Night Night Vision Camera With Anti-Cobweb Function
INTUS Ultra High Resolution True Day/Night Camera with Anti Cobweb Function, 550 TVL, 1/3" Sony Super HAD CCD, 2.8-12mm DC AI VF Lens, 0.00006 Lux, Impact Resistant Housing, Sunshield & Heater, 3D-DNR, D-WDR, OSD, 256x Sens-Up, 35pc IR LEDs, 30m Illumination*, IP66, Soffit/Wall Mount, DC 12V.
- 1/3” Sony Super HAD CCD
- Ultra High Resolution, 600 TVL
- Impact Resistant Housing
- Mechanical IR Cut-Filter
- 3D-Digital Noise Reduction (SDNR)
- Digital Wide Dynamic Range (D-WDR)
- Anti Cobweb Function*
- Built-in 35pc IR LEDs
- Up to 30 Metres Illumination Range*
- Selectable Gain Control
- Selectable White Balance (inc HSBLC)
- Selectable Back Light Compensation
- 256x Sens-Up
- O.S.D. Menu
- Privacy Function
- Sunshield & Heater
- External Control Rings for Easy Focus & Distance Adjustment
- Wall/Soffit Mount
- IP66 Rated
- DC 12V
Model Number
| ZD2812IRACW |
Image Sensor
| 1/3” Sony Super HAD CCD |
Horizontal Resolution
| 600TV Lines (Colour), 650TV Lines (B/W) |
Sensitivity (F1.2)
| 0.00006 Lux |
Lens
| 2.8-12mm DC Auto Iris Varifocal Lens |
| Angle of View | 120° ~ 30° |
Digital Zoom
| On (x32) / Off |
| Effective Pixels (H x V) | 752 x 582 |
Electronic Shutter Speed
| 1/50 ~ 1/120,000 Sec |
| Scanning System | 2:1 Interlace |
| Synchronisation | INT/LL Selectable |
| Sens-Up | Auto / Off (Selectable limit x2 ~ x256) |
| Dynamic Range | 52dB (x128) |
| S/N Ratio | More than 50dB |
| Day / Night | On/Auto Selectable |
| O.S.D. | Yes, Built-In |
| White Balance | ATW / AWBC / MANUAL (1800°K ~ 10,500°K) |
| Gamma Characteristic | 0.45 |
| Back Light Compensation | BLC / HSBLC / Off Selectable |
| AGC | Low / Middle / High / Off Selectable |
| DNR | Low / Middle / High / Off Selectable |
| Sharpness | On/Off (Level Adjustable) |
| Privacy Function | On/Off (4 Programmable Zone) |
| Motion Detection | On/Off (4 Zone, Alarm Output)
|
Mirror
| Off / Mirror / V-Rev / Rotate
|
Freeze
| On/Off |
Blemish Compensation
| 256 Point (Even 128 Point, ODD 128 Point)
|
| IR LEDs | 35pc IR LEDs, 30m Illumination |
| IR Beam Angle | 60° |
| IP Rating | IP66 |
| Operating Conditions | Temperature: -20°C ~ +50°C, Humidity: 95% RH Max |
| Storage Conditions | Temperature: -20°C ~ +60°C, Humidity: 95% RH Max |
| Power Supply | DC 12V |
| Power Consumption | CDS ON: 500mA Max |
| Dimensions (W x H x D) | 88 x 115 x 245 mm |
| Weight | 1.6 Kg |
