ZD2812WLPIR

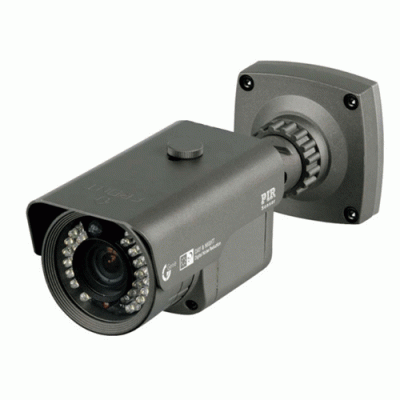

Intus Ultra High Resolution Digital Day/Night Camera With PIR Sensor & White Light LEDs
INTUS Ultra High Resolution Digital Day/Night Camera, 560 TVL, 1/3" Sony Super HAD CCD, 2.8-12mm DC AI VF Lens, 0.00006 Lux, Impact Resistant Housing, Sunshield & Heater, DNR, OSD, 128x Sens-Up, 35pc White Light LEDs with PIR Sensor, 30m Illumination*, IP66, Soffit/Wall Mount, DC 12V.
- 1/3” Sony Super HAD CCD
- Ultra High Resolution, 560 TVL
- Impact Resistant Housing
- Digital Day/Night
- Digital Noise Reduction (DNR)
- Built-in 35pc White Light LEDs with PIR Sensor
- Up to 30 Metres Illumination Range*
- Selectable Gain Control
- Selectable White Balance
- Selectable Back Light Compensation
- 128x Sens-Up
- O.S.D. Menu
- Privacy Function
- Sunshield & Heater
- External Control Rings for Easy Focus & Distance Adjustment
- Wall/Soffit Mount
- IP66 Rated
- DC 12V
Model Number
| ZD2812WLPIR |
Image Sensor
| 1/3” Sony Super HAD CCD |
Horizontal Resolution
| 560 TVL |
Sensitivity (F1.2)
| CDS OFF : 0.1 Lux / CDS ON 0.00006 Lux |
Lens
| 2.8-12mm DC Auto Iris Varifocal Lens |
Angle of View
| 120° ~ 30° |
TV System
| PAL |
| Effective Pixels (H x V) | 752 x 582 |
Electronic Shutter Speed
| 1/50 ~ 1/120,000 Sec |
| Scanning System | 2:1 Interlace |
| Synchronisation | Internal |
| Frequency | Horizontal: 15.625 KHz, Vertical: 50.00 Hz |
| Video Output | CVBS : 1.0Vp-p 75 Ohm |
| S/N Ratio | More than 50dB |
| Day / Night | On/Auto Selectable |
| O.S.D. | Yes, Built-In |
| White Balance | ATW / AWBC / MANUAL (1800°K ~ 10,500°K) |
| Gamma Characteristic | 0.45 |
| Back Light Compensation | Low / Middle / High / Off Selectable |
| AGC | Low / Middle / High / Off Selectable |
| DNR | Low / Middle / High / Off Selectable |
| Sharpness | On/Off (Level Adjustable) |
| Privacy Function | On/Off (4 Programmable Zone) |
| White Light LEDs with PIR Sensor | 35pc White Light Leds (30m Illumination*). PIR Sensor Triggers White Light |
| White Light Beam Angle | 60° |
| IP Rating | IP66 |
| Operating Conditions | Temperature: -20°C ~ +50°C, Humidity: 95% RH Max |
| Storage Conditions | Temperature: -20°C ~ +60°C, Humidity: 95% RH Max |
| Power Supply | DC 12V |
| Power Consumption | CDS ON: 500mA Max |
| Dimensions (W x H x D) | 88 x 115 x 245 mm |
| Weight | 1.6 Kg |
