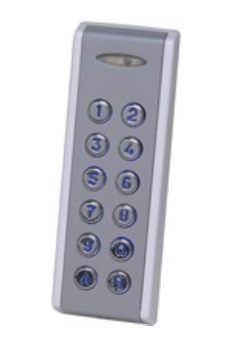

Genie Access SAKP-SLIM-W2 Slimline Surface Mount

Zoom

Our Price:	£122.28
List Price:	~~£248.64~~
Saving Of:	£126.36 (51%)

(Exc. 20% VAT)(£146.74 Inc. VAT)

Catalogue No: SAKP-SLIM-W2
Brand: Genie Access

Availability:

Delivery Information

Genie Access

SAKP-SLIM-2W

Key Features

Free Tension Red and Green LEDs
12/24V AC/DC Power Supply
ABS or Sturdy Die-Cast Aluminium Alloy Housing
Modern Design, Blends Into Most Environments
Internal Buzzer and Yellow LED for Programming and Status Indication
Tamper Switch for Anti-Sabotage Protection

Technical Specification

Slimline - Surface Mount
Operating Voltage
Operating Current
Outputs
Output Modes
Door Open Time
No.of User Codes
Code Length
Connections
Cable
IP Rating
Operating Temperature
Operating Humidity
Material
Finish
Keypad
Illumination
Dimensions (W x H x D)

12/24V AC/DC
60mA
2 Relays (2A & Transistor)
Pulse / Latch
1-99 Seconds, Selectable
99 Unique Codes
1-8 Digits
3 Wire Codix Bus - (Fly Lead)
2m Long, 12 Core
IP67
-25ºC to 70ºC
0 to 95% (Non-Condensing)
Die-Cast Zinc Alloy
Grey & White
Metal, Backlit Blue Buttons - Potted
Photoelectric Sensor Controlled
50 x 150 x 25 mm
