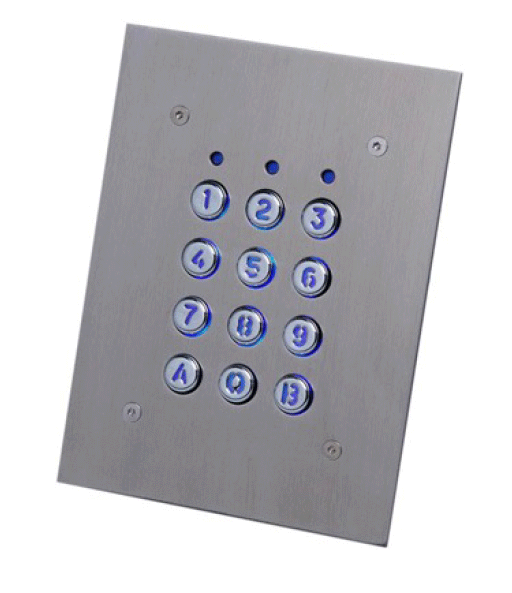

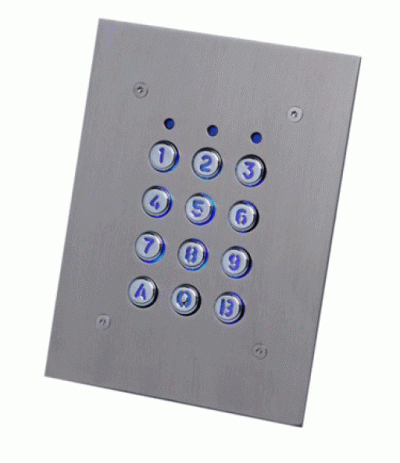

Genie Access NKP-SSF Vandal Resistant Flush Mount

Zoom

Our Price:	£90.69
List Price:	~~£184.41~~
Saving Of:	£93.72 (51%)

(Exc. 20% VAT)(£108.83 Inc. VAT)

Catalogue No: NKP-SSF
Brand: Genie Access

Availability:

Delivery Information

Genie Access

NKP-SSF (FLush Mount)

Key Features

Multi Protocol Robust Keypad
26 / 30 Bit Wiegand Output
Clock & Data Output
Bi-directional CODIX Output
Protocol Selected From Keypad
Backlit Keys
Free Tension Red and Green LEDs
Audible and Visual Feedback

Technical Specification

Vandal Resistant
Operating Voltage
Operating Current
Functionality
Outputs
Output Modes
Wiegand Format
IP Rating
Operating Temperature
Operating Humidity
Material
Finish
Keypad
Illumination
Faceplate Dimensions (W x H x D)
Backbox Dimensions (W x H x D)

9 - 12V DC
47mA
Connects to Master / Host Controller
Multi Protocol Data Output
Wiegand / Clock & Data / Codix
26-30 Bit
IP65
-25ºC to 70ºC
0 to 95% (Non-Condensing)
Stainless Steel
Brushed Stainless Steel
Metal, Backlit Buttons
Blue
105 x 140 x 1.5 mm
84 x 108 x 33 mm
