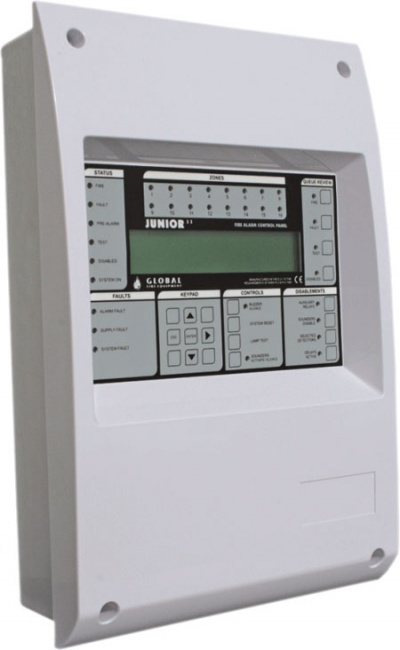

Global Junior Repeater Panel

Zoom

Our Price:   £344.76 List Price:   £400.00 Saving Of:   £55.24 (14%) (Exc. 20% VAT)(£413.71 Inc. VAT) Colour:    White  Red  Black Catalogue No:  JUNIOR-REP-WHITE Brand:  Global Fire Availability:      Delivery Information Global Data Loop Interface  + £67.31 Tweet   Brochure

JUNIOR V4 Repeater Panel

Analogue Addressable Control Panel Repeater - Requires 1 X J-NET-INT-485 Panel Interface

The JUNIOR REP will provide remote control, system status display and monitoring functions for any of GFE’s Analogue Addressable Fire Detection Panels. All Fire, Fault, Test and Disabled conditions are displayed. User is able to control all functions at access Level’s 1, 2 (authorized user level) and 3 (installer/programming level). Compliant with EN-54 part 2. Display and Control Functions are replicated and shown in the same manner as on any of GFE’s Analogue Addressable Fire Detection Panel. Access to Levels 2 and 3 is via a code using the same as programmed for the associated panel.

This unit uses the same plastic enclosure as the Junior V4 panel and is available in 3 colours: white, red and black.

It includes as standard an RS-485 interface.

This unit is also compatible with all of GFE’s standard data loop interfaces allowing the Junior Rep panel to be interfaced to both Junior and Juno Net addressable panels using 3 different interfacing technologies:

• lRS-485
• lFibre Optics
• lTCP/IP

A maximum of 4 JUNIOR REPs panels can be connected to a single Addressable Panel if powered directly from the Control Panel’s Auxiliary Supply Output. This number is always dependent on maximum current load derived from a single auxiliary supply output.

NB:  Repeater panels require an RS-485 Data Loop Interface PCB fitting into the control panel - Part No J-NET-INT-485
