Global Manually Addressable Module

Zoom

Our Price:	£12.32
List Price:	~~£15.50~~
Saving Of:	£3.18 (21%)

(Exc. 20% VAT)(£14.78 Inc. VAT)

Variants:	Red - Call Point
	Yellow - Output
	White - Detector

Catalogue No: MAM-Red
Brand: Global Fire

Availability:

Delivery Information

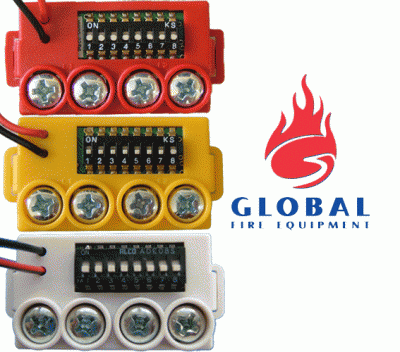

Manually Addressable Module

The MAM allows the connection and addressing of conventional detectors, call points, Micro Input, Micro Output and conventional Sounder/ Beacon.

With its small physical size and convenient 8 way DIL switch for address setting and configuration, the MAM provides the facility to upgrade all the components of a conventional system to a full addressable system, ideal for retrofit installations.

The MAM is fully compatible with all our standard addressable modules, addressable sounders, addressable manual call points and GFE detectors facilitating extensions to existing systems. To assist easy identification, the MAM is
supplied in 3 coloured plastic housings:

Red: Manual call point interface / Micro Input Module
Mustard: Micro Output Module / LOOP SOUNDER/ BEACON Controller
White: Smoke / Heat Detector interface.

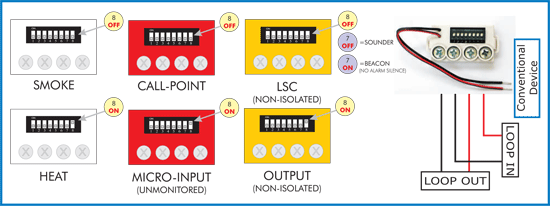

Device type selection is by means of switch 8 on the DIL. Additionally the MAM-LSC can be set as a sounder or beacon driver using switch 7. In Sounder mode the output is removed when a Silence Alarm signal is received from the control panel. In Beacon mode the output remains active until the system is reset.
