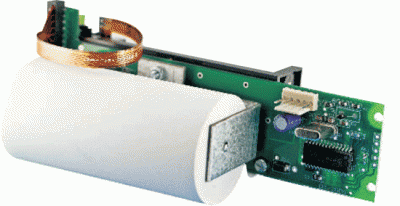

Juno-Net internal printer

This 40 column internally mounted thermal printer provides a hardcopy of the Juno Net panel log containing all relevant events occurring in the system.

All events are date and time stamped and are backed by a 2000 events deep rolling log kept in the panel's non-volatile memory.

Note: in order for the printer to work properly it is necessary that the J-NET-QUART chip be installed on the Juno Net Panel - Main Board. Please refer to the panel's installation manual for full details.

Technical Specifications


Supply Voltage 5 V DC nominal - Does not require external supply.
Current Consumption 50 mA - standby/ 250 mA - printing @ 25 C
Interface TTL logic levels @ 1200 baud, 8 data bits, 1 stop bit, no parity

Hardware handshake - Printer Busy Signal
Connector Type 5-way straight polarised Molex type connector

Flat cable assembly provided with mechanism
Max. Humidity 85% RH Non-Condensing
Operating Temperature 0 ºC to 40 ºC
Dimensions 145 (W) x 45 (D) x 65 (H) mm
Weight 121 g Printer Assembly - 208 g inc. paper roll

Order Code


J-NET-IP Juno Net - Internal Thermal Printer - 40 column
