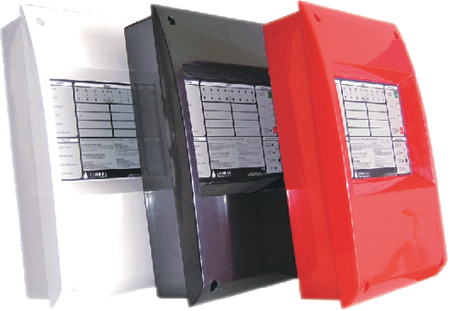

Global Orion Repeater Panel

Global Orion Repeater Panel
Our Price:  £94.81
List Price:  £110.00
Saving Of:  £15.19 (14%)
(Exc. 20% VAT)(£113.77 Inc. VAT)

Catalogue No:  OR-REP-White
Brand:  Global Fire

Current Item:


Click for delivery info

Global Orion Repeater InterfaceGlobal Orion Repeater Interface

Global Fire


Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

Global Orion

Conventional Fire Detection Repeater Panels - Requires interface OR-INT-RS232

The ORION REP will provide remote control, system status display and monitoring functions. All Fire, Fault, Test and Disabled conditions are displayed. User is able to control all functions at access Level’s 1 and 2. Compliant with EN-54 part 2. Display and Control Functions are replicated and shown in the same manner as on the Orion Fire Detection Panel.

Access to Level 2 is via a four digit code (same code as used on the Orion Conventional Panel).

It includes as standard an RS-232 interface. This unit is also compatible with all of GFE’s standard data loop interfaces allowing the Orion Mini Rep panel to be interfaced to an ORION conventional panel using 4 different interfacing technologies:

  • lRS-232
  • lRS-485
  • lFibre Optics

lTCP/IP ( Specific for Orion Conventional Systems)

A maximum of 4 Orion Rep panels can be connected to a single Orion Conventional Fire Detection Panel. When using RS-232 interfaces only one repeater panel will offer both control and display of the system. The remainder of the repeater panels will only offer system status display. In order to have control from more than one Orion Mini Rep panels any of the other interfacing technologies can be used.

NB:  Repeater panels require an RS-485 Data Loop Interface PCB fitting into the control panel - Part No OR-INT-RS232
