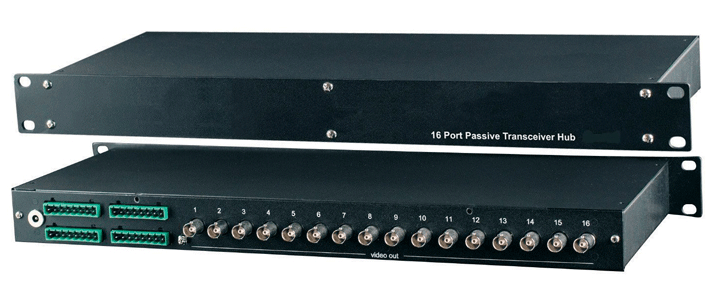

GTH016 Channel Passive Video Transceiver
Product Overview
16-Channel Passive Video Transceiver, 1U High, 19-Inch Rack Mounting Panel, Extra Interference Rejection, 16 x BNC Connector to 1 x 16-Way Terminal Strip.
Key Feature
- 16 Channel 19-inch Rack Mounting Transceiver Hub
- Passive, Requires No Power
- 16-way Terminal Block for Video Input
- 16 x BNC Connector for Video Output
- For Use with Category 5, 5e or 6 UTP Cable
Technical Specification
Model Number
| GTH016 |
| Nominal Input Impedance | 100-105 Ohm (Balanced) |
| Nominal Output Impedance | 75 Ohm (Unbalanced) |
| Input Connector | 16 Position Terminal Block |
| Output Connector | 16 x BNC Connector |
| Video Input | 1V p-p |
| Video Output | 1V p-p |
| Cable Type | Category 5 5e or 6 UTP (24AWG) |
| EMI Standard | Meets FCC Class B / CE |
| Dimensions (W x H x D) | 482mm x 44mm x 105mm |
| Material | Metal Black in Colour |
| Operating Temperature | 0° C ~ +40° C |
| Operating Humidity | 20% ~ 80% |
