Informer HD 8 DVR D1 H.264 Recorder Network HDMI

Zoom

Our Price: £232.05(Exc. 20% VAT)(£278.46 Inc. VAT)

Catalogue No: Informer-HD8
Brand: Informer
Warranty: 2 Years
SATA HDD: 0 - 2Tb (No HDD Supplied)
Compression: H.264
Record Rates: 25fps D1
Max Cameras: 8

Availability:

Delivery Information

User Manual

Informer HD 8 Channel DVR D1 25fps H.264 Recorder Network HDMI 1080p output

Professional quality silent running (fan-less) DVR recorder featuring HDMI 1080p output, 25 fps D1 recording, H.264 video compression, 1 X SATA HDD (up to 2 Tb), 2 X USB2.0 ports for back-up and mouse control, pentaplex operation, live, recording, playback, back-up and remote access. Dual encoding streams, network compatible and mobile phone apps.

Mobile Compatible

informer DVR mobile app

iPhone, Blackberry and Symbian phone compatibility

DVR Features

8 channels cost eective 1U standalone DVR
Up to 8 cameras with full HD 1080P display
H.264 video compression algorithm ideal
25fps at D1 recording
Dual encoding streams supported
TV(BNC)/VGA/HDMI synchronous video output
Live, recording, playback, backup & remote access
8 channel simultaneous playback
Smart video detection: MD, camera blank, video loss
Easy backup: USB devices, network download
Alarm triggering screen tips, buzzer, PTZ, e-mail, FTP upload
Supports 1 SATA HDD, 2 USB2.0
Built-in web server, multi-DVR client, DMSS & CMS

DVR Rear panel

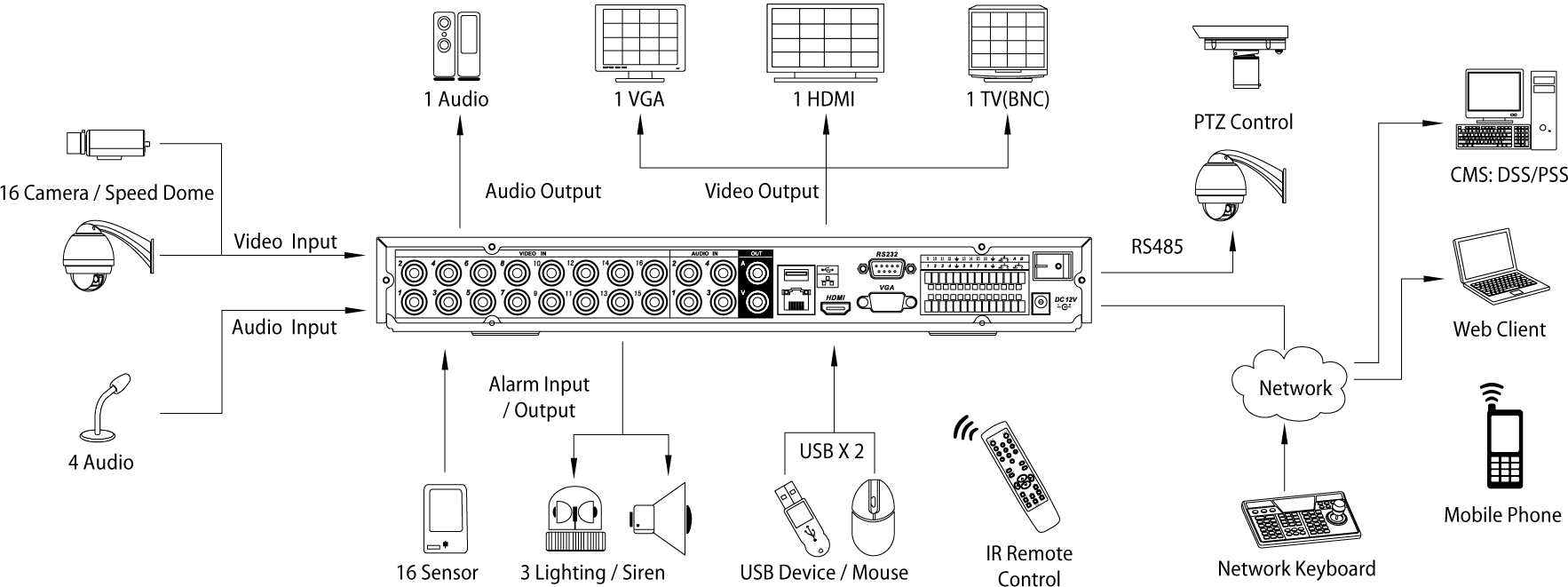

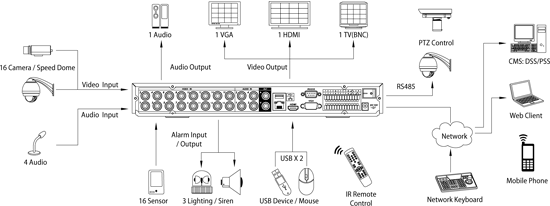

DVR Connection Schematic

Specifications

System	Main Processor	High performance embedded microprocessor
	Operating System	Embedded Linux
	System Resources	Pentaplex function: live, recording, playback, backup & remote access
	Control Mode	Front panel, USB mouse, IR remote control, Keyboard, Network
Video	Input	8 channel, BNC(1.0Vp-p, 75)
	Standard	PAL(625Line, 50f/s)
	Output	1 TV, BNC(1.0Vp-p, 75), 1 VGA, 1 HDMI
Audio	Input	8 channel, BNC(200-2800mV, 30K) Channel 1 for bidirectional-talk input synchronously
	Output	1 channel, BNC(200-3000mV, 5K)
Display	Display Split	1/4 - 1/4/8/9 - 1/4/8/9/16
	Resolution	1920×1080, 1280×1024, 1280×720, 1024×768, 800×600
	Tour Display	Support
	Privacy Masking	4 self-defined four-sided zones for privacy masking for each camera
	OSD	Camera title, time, video loss, camera lock, motion detection, recording
Recording	Video/Audio Compression	H.264 / G.711
	Image Resolution	D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)
	Encoding Speed	Main stream channels 1-8 CIF (1~25fps), D1 (1~25fps) - per channel
		Extra Stream: QCIF(1~25fps) , CIF (1~6fps) - per channel
	Bit-rate	32~2048Kb/s
	Image Quality	1~6 level(level 6 is the best, VBR efectively)
	Recording Mode	Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop
	Recording Priority	Manual >Alarm >MD >Regular
	Recording Interval	1~120 min. (default: 60 min.), Pre-record: 1~30 sec., Post-record: 10~300 sec.
Video	Trigger Events	Recording, PTZ movement, Tour, Alarm, Email, Spot output
Detection	Motion Detection	Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
& Alarm	Video Loss, Camera Blank	Support
	Alarm Input	8 channels
	Relay Output	3 channel
Playback & Backup	Playback Channel	1/2/4/All
	Search Mode	Time/Date, Alarm, Motion Detection & Exact search (accurate to second)
	Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow play, Next le, Previous le, Next camera, Previous camera, Full screen, Repeat, Shue, Backup selection, Digital zoom(any size)
	Backup Mode	Flash drive / USB HDD / USB CD/DVD-RW / Network download
Network	Ethernet	RJ-45 port (10/100M)
	Network Functions	TCP/IP, UDP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Email, Alarm Server
	Remote Operation	Monitor, PTZ control, Playback, System setting, File download, Log information
Hard Disk	Hard Disk	1 SATA port, Max 2TB HDD supported
	Space Occupation	Audio: 28.8MB/H, Video: 56~500MB/H
	HDD Management	Hard disk hibernation technology, HDD faulty alarm
Auxillary Interface	USB Interface	2 ports, 1 for mouse control, 1 for backup
	RS232	keyboard, PC communication
	RS485	PTZ control
Environmental	Power Supply	AC 100~240 V, 50/60 Hz
	Power Consumption	25W
	Working Environment	-10~+55℃ / 10~90%RH / 86~106kpa
	Dimension	1U, 375mm×285mm×45mm(W×D×H)
	Weight	2.35KG (without HDD)

Example recording times

HDD Size	4 Ch, D1 @ 6f/s per camera	8 Ch, D1 @ 6f/s per camera	16 Ch, D1 @ 6f/s per camera
500Gb	20 days 14 hours	10 days 7 hours	5 days 3 hours
1000Gb	41 days 5 hours	20 days 14 hours	10 days 7 hours
2000Gb	82 days 10 hurs	41 days 5 hours	20 days 14 hours
