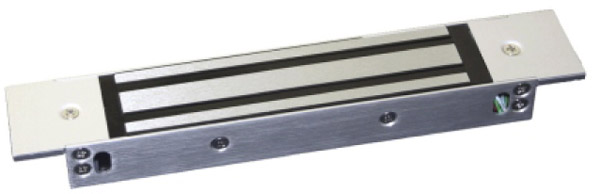

Diax M180 Mortice Mag Lock

Zoom

Our Price:	£38.47
List Price:	~~£53.88~~
Saving Of:	£15.41 (29%)

(Exc. 20% VAT)(£46.16 Inc. VAT)

Catalogue No: M180
Brand: Diax

Availability:

Delivery Information

Download Data Sheet

M180

M180 is a small, mortice mount magnetic lock with a holding force of 180kg. It is ideal for sliding doors and windows.

The M180 is a convenient mortice magnetic lock with a holding force of 180Kg.

The unit is 12/24Vdc selectable, and is suitable for locking sliding doors and windows.

Material: Aluminium
Voltage: 12/24Vdc
Current: 630mA @ 12Vdc, 315mA @ 24Vdc
Dimensions: 206 x 32 x 25mm
Temperature: -20°C to +50°C

Download Installation Manual

Table of locks

Code	Description	Kg Holding	Monitoring	Dimensions	Voltage	Current
M180	Mortice Magnet	180Kg	No	206 x 32 x 25mm	12/24Vdc	630/315mA
P335ER	Mortice Magnet, Multi-Fix	300Kg	Yes	215 x 35 x 25mm	12/24Vdc	630/315mA
M300(M)	Mortice Magnet	300Kg	Yes	229 x 38 x 27mm	12/24Vdc	630/315mA
M400(M)	Mortice Magnet	400Kg	Yes	229 x 44 x 30mm	12/24Vdc	630/315mA
M500	Mortice Magnet	500Kg	No	288 x 64 x 38mm	12/24Vdc	630/315mA
S180	Surface Magnet	180Kg	Yes	168 x 33 x 20mm	12/24Vdc	630/315mA
S300(M)	Surface Magnet	300Kg	Yes	253 x 46 x 27mm	12/24Vdc	630/315mA
SD300(M)	Surface Double Magnet	300Kg per side	Yes	506 x 46 x 27mm	12/24Vdc	630/315mA
S400(M)	Surface Magnet	400Kg	Yes	253 x 49 x 29mm	12/24Vdc	630/315mA
S500(M)	Surface Magnet	500Kg	Yes	272 x 65 x 41mm	12/24Vdc	630/315mA
SD500(M)	Surface Double Magnet	500Kg per side	Yes	544 x 65 x 41mm	12/24Vdc	630/315mA
